Description

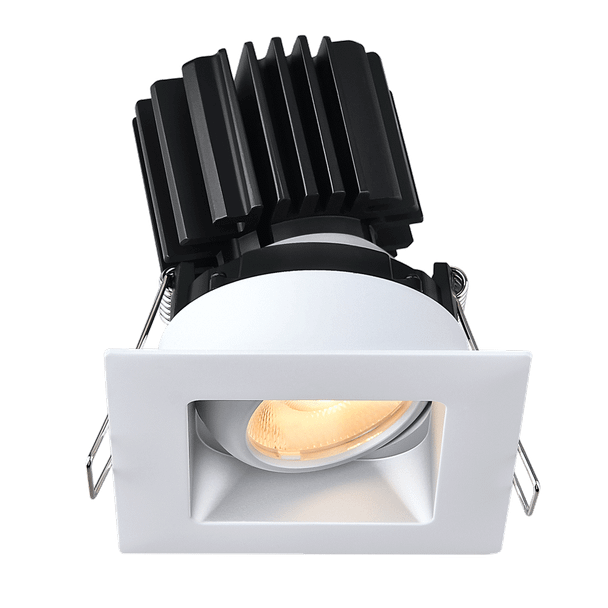

The Lotus Tangra L3G-SRW is a premium 3" gimbal square recessed wide trim fixture designed for high-performance architectural lighting. Built with a solid cast aluminum body and advanced optics, it delivers flexible aiming and tunable light options for demanding residential and commercial spaces. As part of Lotus’ modular Tangra lineup, it supports multiple driver and optical configurations for tailored project results.

Key Features and Benefits

High-output performance up to 1600 lumens with selectable 11W or 15W operation
Advanced aiming flexibility with 20° tilt and full 360° rotation for precise accent and task lighting
Versatile LED package options including 4CCT + Dim-to-Warm (3500K to 2700K) at CRI90
Wet-location and Type IC rated design with IP54 protection for broader installation environments
Supports Triac or 0-10V dimming driver options for residential and commercial control compatibility
Certified to cETLus and FCC standards with Lotus lifetime line warranty plus 5 years

Specifications

Lumen Output: 1600
Wattage: 11W|15W
Voltage: 120V|120-347V
Color Temperature: 3500K|2700K
CRI: 90
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
Beam Angle: 20°|24°|36°|50°|60°
Fixture input: 20-40V DC Max 350 mA Constant Current
Frequency (Hz): 50/60
Power Factor: 0.9
Max Ambient Temperature: 45°C
Rated Life (70 Hours): 50000
IP Rating: IP54
Cutout: 3 1/4"
Ceiling space required for driver: 4"

Common Uses

Ideal for task lighting, sloped ceilings up to 20°, and wall washing in residential, hospitality, retail, and commercial interiors where directional control and high color quality are essential.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Gimbal Square Recessed Wide Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	90
Color Temperature:	2200K\|2700K\|3000K\|4000K\|3500K
IP Rating:	IP54
Lumen Output:	1600
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable\|Color Temperature Selectable
Voltage:	120V\|120-347V
Wattage:	11W\|15W
