Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 4CCT+DTW 3500K-2700K CRI90

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

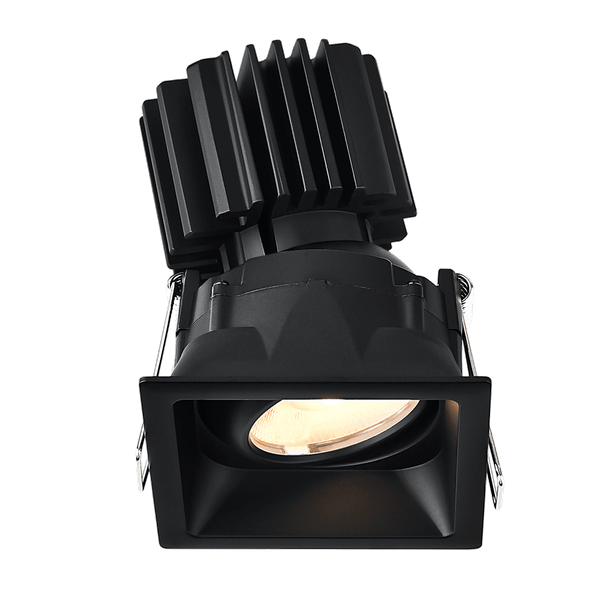

Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 4CCT+DTW 3500K-2700K CRI90

$136.60
  • SKU: LLL-L3G-SRT-4C90
  • MPN: L3G-SRT-4C90

Quick Overview

3" gimbal square recessed downlight with thin trim, selectable 11W/15W power, up to 1600 lm, 20° tilt and 360° rotation, and 4CCT+dim-to-warm tuning for task, sloped ceiling, and wall wash applications.

IP54
  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus L3G-SRT Tangra is a premium 3" gimbal square recessed thin-trim fixture engineered for high-end architectural lighting. Built with a solid cast aluminum body and advanced optics, it delivers flexible aiming, high color quality, and modular configuration options. As part of Lotus’ Tangra lineup, it is designed to handle demanding residential and commercial applications with precision and reliability.

Key Features and Benefits

  • Adjustable gimbal design with 20° tilt and full 360° rotation for precise accent, task, and wall-wash lighting.
  • Selectable 11W/15W operation (with compatible Tangra driver) to balance output and energy use per project needs.
  • Advanced CCT flexibility including 4CCT + dim-to-warm tuning for adaptable ambiance across spaces.
  • Durable cast aluminum construction with refined trim/optic options for premium architectural aesthetics.
  • Certified for demanding installs with cETLus, FCC, Type IC, airtight, open plenum, and wet-location IP54 compliance.
  • Backed by Lotus lifetime line support plus 5-year warranty coverage for long-term confidence.

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W|15W
  • Voltage: 120V|120-347V
  • Dimming Type: Phase|0-10V
  • Color Temperature: 2200K|2700K|3000K|3500K|4000K
  • CRI: 90
  • Beam Angle: 20°|24°|36°|50°|60°
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Fixture Input: 20-40V DC Max 350mA constant current
  • Operating Temperature: -40°F (-40°C) to +113°F (+45°C)
  • Rated Life (L70): 50000 hours
  • Cutout: 2 5/8" square
  • Ceiling Space Required Above Driver: 4"

Common Uses

Ideal for task lighting, sloped ceilings up to 20°, and wall washing in residential, hospitality, retail, and commercial interiors where directional control and tunable white performance are required.
