Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98

By Lotus LED Lights
Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98
Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98
Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98
Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98
Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98
Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98
Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98
Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98
Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98
Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT 2700K|3000K|3500K|4000K|5000K, CRI98

$136.60
  • SKU: LLL-L3G-SRT-5C98
  • MPN: L3G-SRT-5C98

Quick Overview

3" gimbal square recessed downlight with thin trim, selectable 11W/15W power, up to 1600 lm, 5CCT tuning, CRI98, and 20° tilt with 360° rotation for task, sloped ceiling, and wall wash applications.

IP54
  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

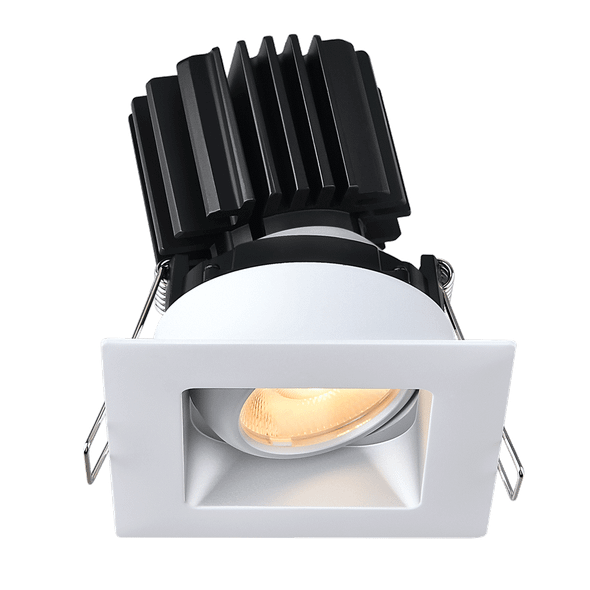

The Lotus L3G-SRT Tangra 3" Gimbal Square Recessed Thin Trim is a premium architectural recessed fixture designed for precision aiming and high visual comfort. Built with a solid cast aluminum body and advanced optics, it is part of Lotus’ modular Tangra lineup for flexible, high-performance lighting designs.

Key Features and Benefits

  • Ultra-high color quality with CRI98 LED option for accurate, vibrant color rendering
  • User-selectable 11W or 15W operation with up to 1600 lumens for adaptable output
  • Gimbal aiming with 20° tilt and full 360° rotation for focused task and accent lighting
  • Multiple beam spreads (20°, 24°, 36°, 50°, 60°) to match different lighting layouts
  • Certified cETLus and FCC compliant, with Type IC, Airtight, Open Plenum, and Wet Location IP54 ratings
  • Long-term coverage backed by Lotus lifetime line support plus 5-year warranty

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W/15W selectable
  • Voltage: 120V (Triac driver) or 120-347V (0-10V driver)
  • Color Temperature: 2700K/3000K/3500K/4000K/5000K (5CCT)
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • CRI: 98
  • Fixture Input: 20-40V DC, max 350mA constant current
  • Dimming: Triac (3% reverse phase, 4% forward phase cut) or 0-10V with compatible driver
  • Rated Life: 50,000 hours (L70)
  • Ambient Temperature: -40°F (-40°C) to +113°F (+45°C)
  • Cutout: 2 5/8" square; driver clearance above ceiling: 4"
  • Beam Angle: 20°/24°/36°/50°/60°
  • IP Rating: IP54

Common Uses

Ideal for residential and commercial interiors including task lighting, sloped ceilings up to 20°, and wall washing in living spaces, hospitality settings, retail areas, and other design-focused architectural applications.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Gimbal Square Recessed Thin Trim Spec Sheet
