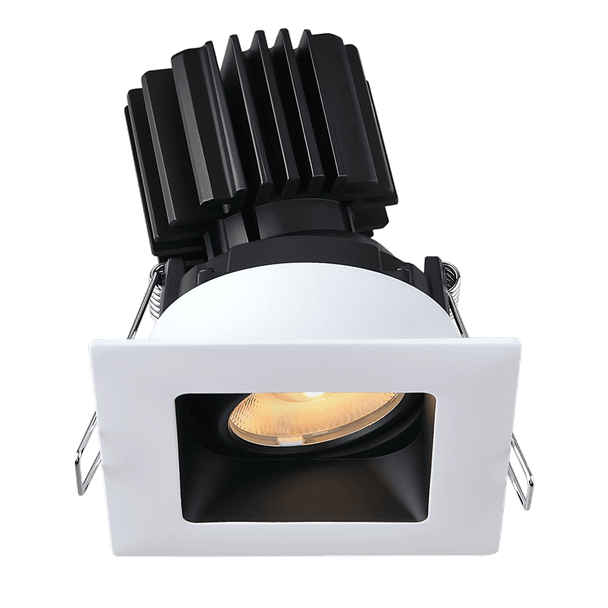

Lotus Tangra 3" Gimbal Square Recessed Wide Trim, 5CCT 2700K/3000K/3500K/4000K/5000K, CRI95

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus Tangra 3" Gimbal Square Recessed Wide Trim, 5CCT 2700K/3000K/3500K/4000K/5000K, CRI95

$136.60
  • SKU: LLL-L3G-SRW-5C95
  • MPN: L3G-SRW-5C95

Quick Overview

3" gimbal square recessed wide trim with up to 1600 lumens, 11W/15W selectable power, 20° tilt and 360° rotation, high CRI95 5CCT tuning, and wet-location IP54 rating for task, sloped ceiling, and wall-wash applications.

IP54
  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus L3G-SRW Tangra is a premium 3" gimbal square recessed fixture engineered for high-performance architectural lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers precise beam control and excellent color quality for demanding residential and commercial spaces. Its modular platform and separate driver options make it a versatile choice across many project types.

Key Features and Benefits

  • Precision aiming with 20° tilt and full 360° rotation for flexible accent and task lighting
  • Selectable 11W/15W operation with output up to 1600 lumens for performance tuning on site
  • Ultra-high color quality options up to CRI98, including 5CCT and Dim-to-Warm configurations
  • Durable cast aluminum construction with multiple trim and optic combinations for design customization
  • Certified cETLus and FCC compliant, with Type IC, airtight, open plenum, and wet-location IP54 suitability
  • Long-term confidence backed by Lotus lifetime line support plus 5-year warranty coverage

Specifications

  • Lumen Output: 1600
  • Wattage: 11W|15W
  • Voltage: 120V|120-347V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 95
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Beam Angle: 20°, 24°, 36°, 50°, 60°
  • Dimming Type: Phase|0-10V
  • Output Current: 350mA
  • Output Voltage Range: 20-40V DC
  • Rated Life (70 Hours): 50000
  • Max Ambient Temperature: 113°F (45°C)
  • IP Rating: IP54

Common Uses

Ideal for task lighting, sloped ceilings up to 20°, and wall washing in residential interiors, hospitality spaces, retail environments, and other architectural applications requiring directional recessed illumination.
