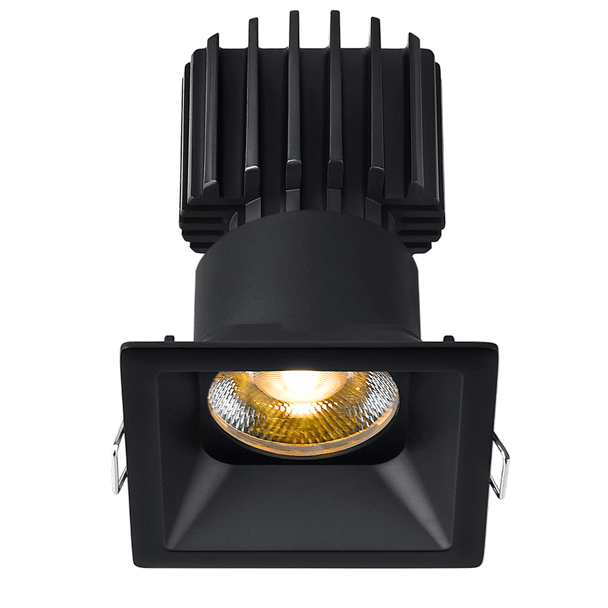

Tangra 3" Fixed Square Recessed Thin Trim, 5CCT CRI98

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Tangra 3" Fixed Square Recessed Thin Trim, 5CCT CRI98

$125.85
  • SKU: LLL-L3F-SRT-5C98
  • MPN: L3F-SRT-5C98

Quick Overview

3" fixed square recessed downlight with thin trim, selectable 11W/15W power, up to 1600 lumens, 5CCT tuning, CRI98, and wet-location IP54 rating for premium residential and commercial ambient lighting.

ETL Listed
WET RATED
IC RATED
WARRANTY 5 YEARS
IP54
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights Tangra L3F-SRT series is a premium 3" fixed square recessed fixture designed for high-end ambient and general lighting. Built with a solid cast aluminum body and advanced optics, it delivers refined aesthetics, reduced glare, and strong visual comfort for modern spaces.

Key Features and Benefits

  • Modular Tangra platform supports multiple trims, optics, beam spreads, and LED packages for flexible project design.
  • Ultra-high color quality options up to CRI98 for accurate, vibrant color rendering in architectural interiors.
  • User-selectable 11W or 15W operation with compatible Lotus drivers to balance output and energy use.
  • Certified for demanding installs with cETLus and FCC compliance, plus Type IC, Air Tight, Open Plenum, and Wet Location IP54 suitability.
  • Backed by Lotus lifetime line support warranty plus 5 years for long-term confidence.

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W|15W
  • Voltage: 120V|120-347V
  • Dimming Type: Phase|0-10V
  • Beam Angle: 20°|24°|36°|50°|60°
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 98
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Fixture Input: 20-40V DC Max 350mA Constant Current
  • Max Ambient Temperature: -40°F to +113°F (-40°C to +45°C)
  • Rated Life (70 Hours): 50000
  • Cutout: 2 5/8" square
  • Driver Clearance Above Ceiling: 4"

Common Uses

Ideal for residential and commercial interiors including living areas, corridors, hospitality spaces, retail environments, and other architectural applications requiring compact recessed lighting with premium finish and glare control.
