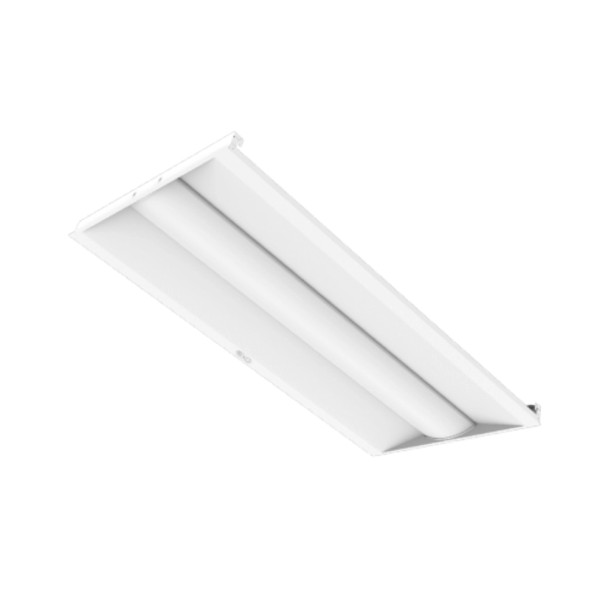

VST Volumetric Selectable Troffer, 2x4, 3000 lumens, 20W, 120-277V, CCT Selectable, Gen 2, Controls Ready

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

VST Volumetric Selectable Troffer, 2x4, 3000 lumens, 20W, 120-277V, CCT Selectable, Gen 2, Controls Ready

$96.95
  • SKU: ILP-VST24-30L-U-CCTS-G2-CR
  • MPN: VST24-30L-U-CCTS-G2-CR

Quick Overview

2x4 volumetric LED troffer with selectable lumen and CCT settings, 120-277V input, 0-10V dimming, and controls-ready design. Ideal for offices, schools, healthcare, retail, and storage spaces with low plenum ceilings.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VST Gen 2 Volumetric Selectable Troffer is a high-performance lay-in fixture engineered for modern commercial interiors. Designed for flexibility, this 2x4 controls-ready model combines field-selectable light output and CCT tuning in an ultra-shallow housing for easier project standardization. It is a core ILP solution for energy-efficient, adaptable ambient lighting in demanding retrofit and new construction applications.

Key Features and Benefits

  • Field-selectable lumen packages and 5-CCT tuning simplify stocking and on-site configuration.
  • Ultra-shallow 2.1" profile supports installations in tight plenum spaces.
  • 0-10V dimming (10%-100%) enables smooth light control and energy savings.
  • Controls-ready platform supports NUROAir integrated Bluetooth sensor options.
  • ETL Listed for U.S. and Canadian safety standards with Type IC suitability.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 3000
  • Wattage: 20W
  • Voltage: 120-277V
  • Color Temperature: CCT selectable 2700K/3000K/3500K/4000K/5000K
  • CRI: >80
  • Power Factor: >0.90
  • Rated Life (L70): >100000 hours
  • Operating Temperature: -20°C to 40°C
  • Housing: Steel, matte white finish
  • Lens: Frosted polycarbonate
  • Mounting: Recessed T-grid (9/16" and 15/16"), optional flange or surface mount kits

Common Uses

Ideal for education facilities, healthcare spaces, commercial offices, retail environments, and storage facilities where efficient, uniform general illumination and controls integration are required.
