Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 10W/15W/20W, 3000K/3500K/4000K, Drop Lens, Black

By Westgate Manufacturing
Westgate SCXT Series 2' Linear Fixture, 10W/15W/20W, 3000K/3500K/4000K, 0-10V Dimmable, Direct Downlight, Black
Westgate SCXT Series 2' Linear Fixture, 10W/15W/20W, 3000K/3500K/4000K, 0-10V Dimmable, Direct Downlight, Black
Westgate SCXT Series 2' Linear Fixture, 10W/15W/20W, 3000K/3500K/4000K, 0-10V Dimmable, Direct Downlight, Black
Westgate SCXT Series 2' Linear Fixture, 10W/15W/20W, 3000K/3500K/4000K, 0-10V Dimmable, Direct Downlight, Black
Westgate SCXT Series 2' Linear Fixture, 10W/15W/20W, 3000K/3500K/4000K, 0-10V Dimmable, Direct Downlight, Black
Westgate SCXT Series 2' Linear Fixture, 10W/15W/20W, 3000K/3500K/4000K, 0-10V Dimmable, Direct Downlight, Black

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 10W/15W/20W, 3000K/3500K/4000K, Drop Lens, Black

$72.90
MSRP: $80.78
You save $ 7.88 (10%)
  • SKU: WM-SCXT-2FT-10-20W-MCTP-D-DL-BK
  • MPN: SCXT-2FT-10-20W-MCTP-D-DL-BK

Quick Overview

Westgate SCXT 2 ft 2 in. 15/16 Grid Linear Light, 10W/15W/20W, 3000K/3500K/4000K, Drop Lens, Black is a Westgate lighting product with wattage: 10W/15W/20W; lumens: 110; CCT: 3000K/3500K/4000K/5000K; voltage: 120-277V; finish: Black.

IP20
Out of stock
Current Stock:Only left:
Free shipping on this item
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

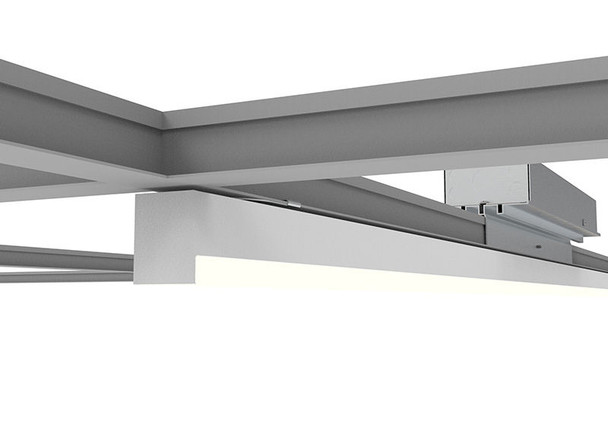

The Westgate SCXT Series 2' linear fixture delivers a sleek, modern lighting solution for commercial interiors that need clean lines and dependable performance. Designed for direct T-grid mounting, suspension, recessed, or surface installation, this model combines selectable output and color temperature flexibility in one compact fixture. As part of Westgate’s architectural linear lineup, it is built to simplify specification while maintaining visual comfort and efficiency.

Key Features and Benefits

  • Selectable power and CCT in one fixture for easier project standardization and on-site adjustment
  • Low-profile aluminum body with matte white finish and opal polycarbonate drop lens for soft, uniform downlight
  • 0-10V dimming support for better lighting control and energy savings in occupied spaces
  • IP54 construction helps protect fixture performance in demanding indoor environments
  • UL Listed with a 5-year warranty for added confidence in commercial applications
  • Linkable design with included coupling bracket for continuous-run style layouts (with endcaps)

Specifications

  • Input voltage: 120-277VAC, 50/60Hz
  • Selectable wattage: 10W / 15W / 20W
  • Delivered lumens: 1100lm / 1650lm / 2200lm
  • Efficacy: 110 lm/W
  • Selectable CCT: 3000K / 3500K / 4000K
  • CRI: ≥80
  • Power factor: >0.95; THD: ≤20%
  • Beam angle: 104.8° (H) x 100.5° (V)
  • Fixture dimensions: 24"(L) x 1"(W) x 1 1/3"(H)
  • Operating temperature: -13°F to 104°F
  • Rated life: 50,000 hours
  • Includes 6-1/2" pre-installed cable with male RJ11 connector; external driver required

Common Uses

Ideal for offices, conference rooms, hallways, hotels, libraries, reception areas, retail spaces, education facilities, storage rooms, and other indoor commercial environments requiring modern linear illumination.

RESOURCES AND DOWNLOADS

Westgate SCXT Series 2' Linear Fixture Spec Sheet
