Description

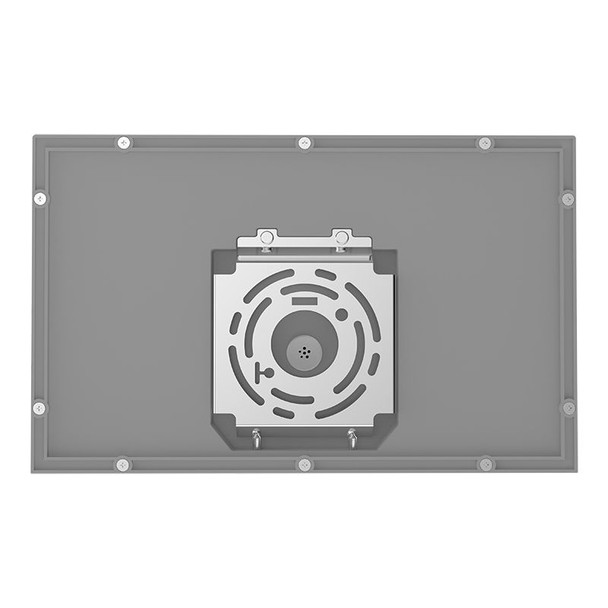

The Westgate WPMAX Series LED Max-Feature Wall Pack is a high-performance exterior fixture built for reliable perimeter and facade illumination. Designed with selectable wattage and color temperature, this model gives contractors and facility teams flexibility to match site requirements while reducing SKU complexity. As part of Westgate’s outdoor lineup, it combines strong output, durable construction, and dark-sky-conscious optical control.

Key Features and Benefits

Field-selectable power and CCT let you fine-tune light levels and appearance from one fixture.
Adjustable throw settings (narrow, medium, wide) help optimize coverage and reduce wasted light.
Prismatic borosilicate glass lens and cutoff-style design improve visual comfort and site visibility.
Built-in photocell and pre-installed sensor socket support smarter energy-saving control strategies.
IP65 wet-location construction with rugged ADC12 aluminum housing stands up to harsh outdoor environments.
Certified for safety and performance with UL Listed and DLC Listed qualifications, backed by a 7-year warranty.

Specifications

Lumen Output: 13500/18000/20250
Wattage: 90W/120W/150W
Voltage: 120-277V
Color Temperature: 3000K/4000K/5000K
CRI: 70+
Efficacy: 135 lm/W
Dimming: 0-10V
Frequency: 50/60Hz
Power Factor: >0.9
Rated Life: 70000 hours
Operating Temperature: -40°F to 122°F
BUG Rating: B2-U3-G3
Dimensions: 13.34"(W) x 8.26"(H) x 5.86"(D)

Common Uses

Ideal for building perimeters, entrances, courtyards, hotel exteriors, industrial facilities, and general wall-mounted outdoor security lighting in commercial and residential settings.

RESOURCES AND DOWNLOADS

Westgate WPMAX Series LED Max-Feature Wall Pack Spec Sheet

Details

Beam Angle:	Narrow\|Medium\|Wide\|T2 T3 T4°
CRI:	70\|80
Certifications:	UL Listed, DLC Standard
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty\|DLC Premium\|UL Listed
Dimming Type:	0-10V
Distribution Type:	Type II\|Type III\|Type IV
Efficacy:	135LM/W
Efficacy (lm/W):	135
Finish / Color:	Silver
Frequency (Hz):	50\|60
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	10.62
Item Length (Inch):	16.92
Item Weight (LBS):	10.08
Item Width (Inch):	7.12
L70 Expected Life (hours):	>50000hr
LED Type:	Refer to attached IES Reports
Lens Material:	Prismatic Borosilicate Glass
Light Source:	Integrated LED
Lumen Output:	20250\|12150\|16200
Max Ambient Temperature:	122°F
Operating Temperature:	-40°F~+113°F
Power Factor:	>0.9
Rated Life (70 Hours):	70000
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output\|Photocell Included
THD:	<20%
Voltage:	120-277V
Wattage:	90W\|120W\|150W
Wet Rated:	true
