MAX-OPTION Traditional Wall Pack 3CCT 80/100/120W Photocell Beam Angle Select

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

MAX-OPTION Traditional Wall Pack 3CCT 80/100/120W Photocell Beam Angle Select

$177.74
MSRP: $199.78
You save $ 22.04 (11%)
  • SKU: WM-WMXMAX-80-120W-MCTPB
  • UPC: 840378314497
  • MPN: WMXMAX-80-120W-MCTPB

Quick Overview

MAX-OPTION Traditional Wall Pack 3CCT 80/100/120W Photocell Beam Angle Select (wattage: 80W/100W/120W; lumens: 16200; efficacy: 135LM/W; CCT: 30K/40K/50K; voltage: 120-277V)

WARRANTY 7 YEARS
IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 837
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

WMXMAX LED Outdoor Lighting: Versatile and High-Performance Solution

Enhance your outdoor illumination with the WMXMAX LED Outdoor Lighting, engineered for peak performance and energy efficiency. This state-of-the-art lighting solution features selectable wattage (80-120W) and customizable color temperatures (3000K, 4000K, 5000K), making it ideal for various outdoor environments like general site lighting, alleys, loading docks, doorways, pathways, and parking areas. It also serves as an excellent replacement for HID wall packs.

Key Features and Benefits

  • Selectable Wattage: 80-120W
  • Customizable Color Temperature: 3000K, 4000K, 5000K
  • High Lumen Output: Up to 16200LM
  • Exceptional Efficacy: 135 LPW
  • Durable and Long-lasting: Lifespan of 70,000 hours
  • Photocell Included: Automatically adjusts lighting

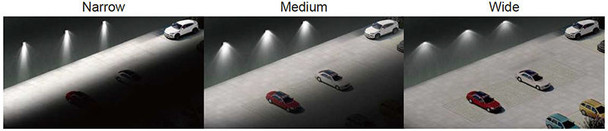

  • Adjustable Beam Angles: Narrow, Medium, and Wide
  • Prismatic Borosilicate Glass Lens: Superior light diffusion

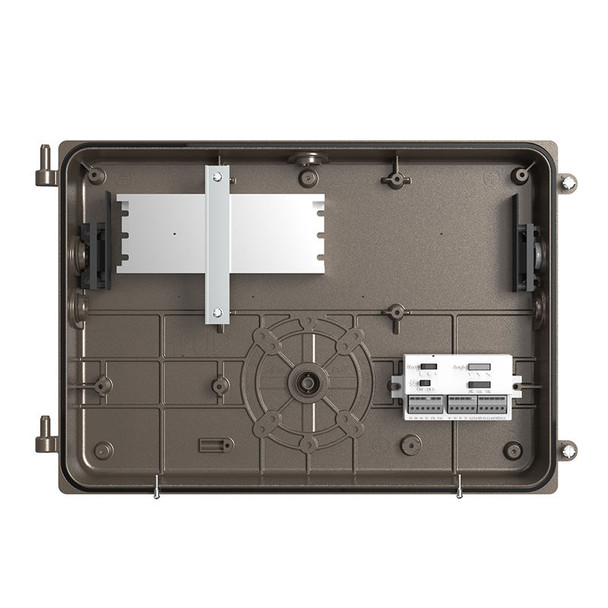

  • Robust Build: ADC12 Aluminum Heat Sink with outdoor powder coating
  • Dimming Capabilities: 0-10V dimming for versatile lighting

Technical Specifications

  • Input Voltage: 120-277V AC 50/60Hz
  • Input Current: 0.6A
  • Power Factor: >0.9
  • CRI: >70
  • Operating Temperature Range: -40°F to 133°F
  • IP Rating: IP65 for wet locations
  • Dimensions: 14.21"(W) x 7.64"(H) x 9.25"(D)

Applications

The WMXMAX LED Outdoor Lighting is perfect for a variety of outdoor settings such as general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Its adjustable features and durable design make it an excellent choice for replacing existing HID wall packs.

RESOURCES AND DOWNLOADS

WMXMAX LED Outdoor Lighting Spec Sheet

Westgate Resources and Downloads
