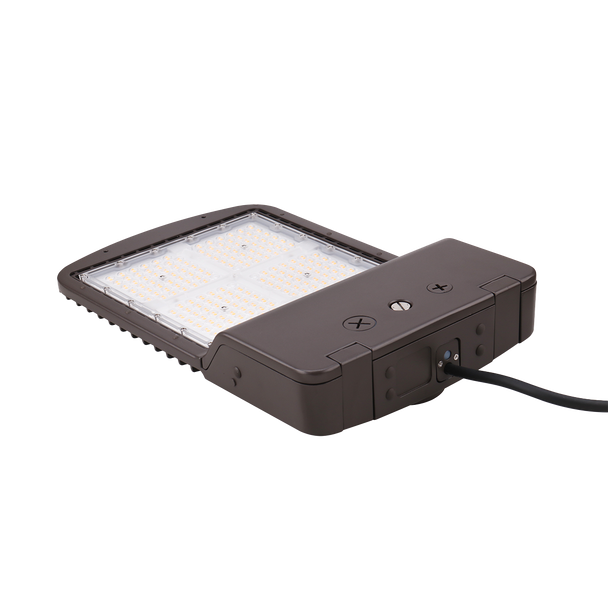

EiKO AAL1 Area Light, 150W, 5000K, Type III, 120-277V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, 150W, 5000K, Type III, 120-277V

Now: $84.62
Reg: $223.07
Sale 62%
You save $ 138.45
  • SKU: E-AAL1-150-50T3-U-PC8
  • MPN: AAL1-150-50T3-U-PC8

Quick Overview

EiKO AAL1 architectural LED area light delivers 21,000 lumens at 150W with Type III distribution, 5000K CCT, 0-10V dimming, and IP65/IK08 durability for parking lots, roadways, and site security lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 Area Light is a high-performance architectural outdoor fixture designed for modern site and perimeter illumination. As part of EiKO’s premium area lighting lineup, it combines high efficacy, rugged construction, and controls-ready flexibility for long-term energy savings and dependable operation.

Key Features and Benefits

  • Delivers strong roadway and site coverage with Type III optical distribution for balanced forward throw.
  • Controls-ready design with screw-in receptacle simplifies future sensor or networked control upgrades.
  • Built for harsh outdoor environments with IP65 weather protection, IK08 impact resistance, and 3G vibration rating.
  • High-efficiency LED platform reduces operating costs while maintaining excellent light quality.
  • Certified for broad project compliance: UL Listed, DLC Premium, RoHS, and FCC.
  • Backed by a 5-year limited warranty for added project confidence.

Specifications

  • Lumen Output: 21000
  • Wattage: 150W
  • Voltage: 120-277V
  • Color Temperature: 5000K
  • CRI: 80
  • Dimming Type: 0-10V (dim-to-off)
  • Efficacy (lm/W): 140
  • Rated Life (L70): 100000 hours
  • Power Factor: 0.9
  • THD: 20
  • Distribution Type: Type III
  • Max Ambient Temperature: 122°F (50°C)
  • Housing Material: Die-cast aluminum
  • Lens Material: Polycarbonate
  • Finish / Color: Bronze powder coat
  • IP Rating: IP65
  • IK Rating: IK08

Common Uses

Ideal for parking areas, auto dealerships, campuses, streetscapes, airports, entryways, building facades, and general area security lighting where reliable, high-output illumination is required.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
