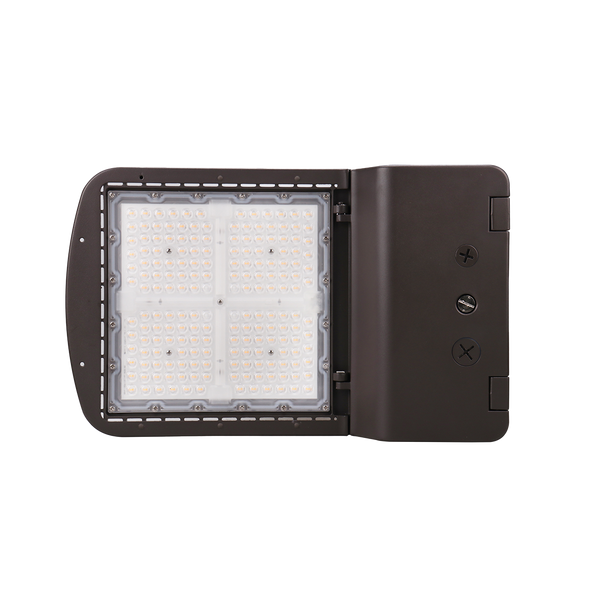

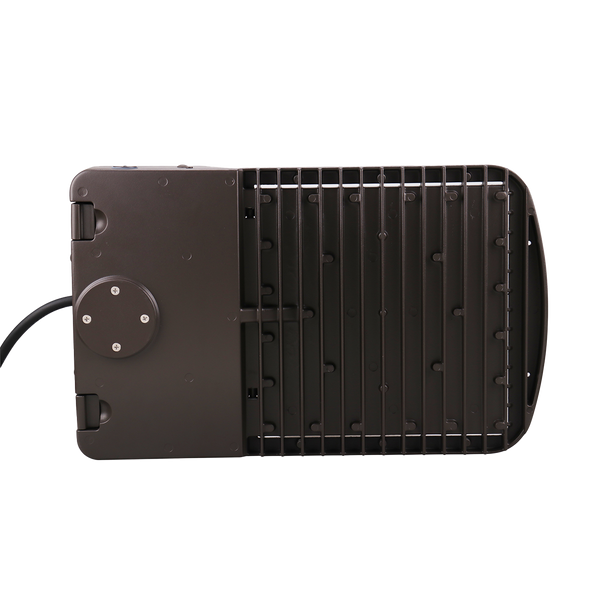

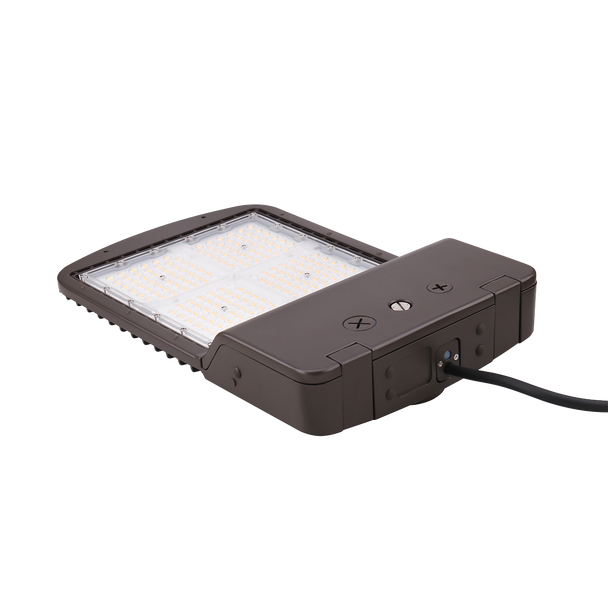

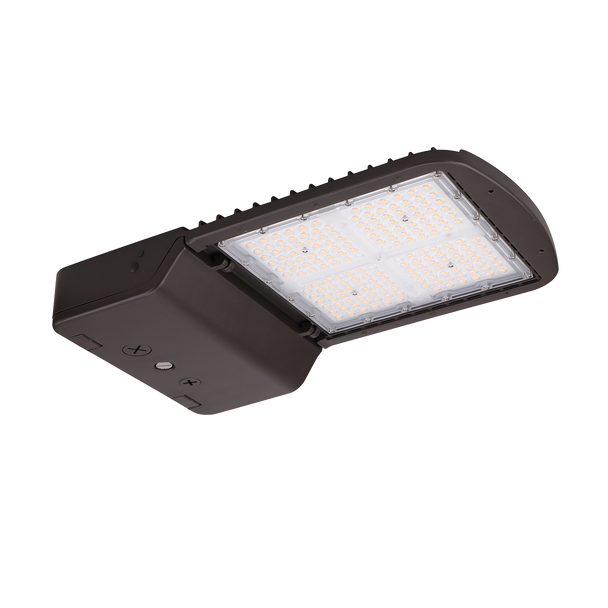

EiKO AAL1 Area Light, 150W, 4000K, Type III, 120-277V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, 150W, 4000K, Type III, 120-277V

$130.70
  • SKU: E-AAL1-150-40T3-U
  • MPN: AAL1-150-40T3-U

Quick Overview

Architectural LED area light delivering 21,000 lumens at 140 lm/W with Type III distribution, 0-10V dimming, and IP65/IK08 durability for parking lots, roadways, campuses, and perimeter security lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 Area Light is a high-performance outdoor luminaire designed for modern site and roadway illumination. Built with a slim architectural profile, this fixture combines strong optical control, high efficacy, and rugged construction to support demanding commercial and municipal projects. As part of EiKO’s premium area lighting lineup, it offers controls-ready flexibility and long-life LED performance for reduced maintenance over time.

Key Features and Benefits

  • High-output performance delivers strong site visibility with excellent energy savings.
  • Controls-ready design with screw-in receptacle simplifies future sensor or networked control upgrades.
  • Rugged outdoor build with IP65 ingress protection, IK08 impact resistance, and 3G vibration rating for reliable operation.
  • DLC Premium qualification supports utility rebate opportunities and high efficacy standards.
  • Certified for broad project compliance with UL Listed, FCC, and RoHS credentials.
  • Backed by a 5-year limited warranty for long-term confidence.

Specifications

  • Lumen Output: 21000
  • Wattage: 150W
  • Voltage: 120-277V
  • Color Temperature: 4000K
  • CRI: 80+
  • Dimming Type: 0-10V (dim-to-off)
  • Distribution Type: Type III
  • Efficacy: 140 lm/W
  • Rated Life (L70): 100000 hours
  • Power Factor: >0.9
  • THD: <20%
  • Operating Temperature: -40b0C to 50b0C
  • Housing Material: Die-cast aluminum
  • Lens Material: UV-resistant polycarbonate
  • Finish / Color: Bronze powder coat
  • IP Rating: IP65
  • IK Rating: IK08

Common Uses

Ideal for parking areas, automotive dealerships, roadways, campuses, streetscapes, airports, building facades, entryways, signage, and general area security lighting.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
