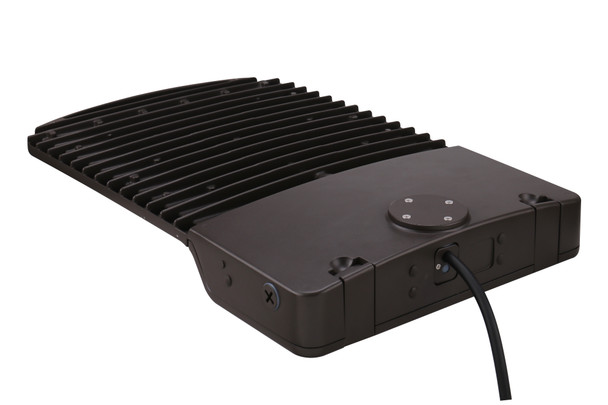

EiKO AAL1 Area Light, 200W, 120-277V

By Eiko Global
EiKO AAL1 Area Light, 200W, 120-277V
EiKO AAL1 Area Light, 200W, 120-277V
EiKO AAL1 Area Light, 200W, 120-277V
EiKO AAL1 Area Light, 200W, 120-277V
EiKO AAL1 Area Light, 200W, 120-277V
EiKO AAL1 Area Light, 200W, 120-277V
EiKO AAL1 Area Light, 200W, 120-277V
EiKO AAL1 Area Light, 200W, 120-277V
EiKO AAL1 Area Light, 200W, 120-277V
EiKO AAL1 Area Light, 200W, 120-277V

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, 200W, 120-277V

$473.10
  • SKU: E-AAL1-200-U
  • MPN: AAL1-200-U

Quick Overview

EiKO AAL1 architectural LED area light delivers 28,000 lumens at 200W with 4000K/5000K options, Type II/III/IV/V distributions, 0-10V dimming, IP65/IK08 durability, and Controls Ready design for parking lots and site lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 Series is a high-performance architectural LED area light family engineered for demanding outdoor site lighting. Designed as a core solution in EiKO’s area lighting lineup, it combines high efficacy, rugged construction, and flexible optical/control options for new installations and retrofit projects.

Key Features and Benefits

  • High-output performance up to 63,000 lumens with efficacy up to 140 lm/W for strong energy savings.
  • Controls Ready design with screw-in receptacle simplifies future upgrades to photocells, motion sensors, or networked controls.
  • Multiple distribution options (Type II, III, IV, V) support tailored light placement for roads, lots, and perimeter zones.
  • Built for harsh environments with IP65 weather protection, IK08 impact resistance, and 3G vibration rating.
  • Certified for broad project acceptance: UL Listed, DLC Premium, RoHS, FCC, and ICES-005 compliant.
  • Backed by a 5-year limited warranty for long-term reliability.

Specifications

  • Lumen Output: 28,000
  • Wattage: 200W
  • Voltage: 120-277V
  • Color Temperature: 4000K | 5000K
  • CRI: 80+
  • Dimming: 0-10V, dim-to-off
  • Power Factor: >0.9
  • THD: <20%
  • Rated Life (L70): 100,000 hours
  • Operating Temperature: -40b0C to 50b0C
  • Housing: Bronze powder-coated die-cast aluminum
  • Lens: Impact and UV resistant polycarbonate

Common Uses

Ideal for parking areas, roadways, campuses, airports, automotive dealerships, streetscapes, building facades, entryways, signage illumination, and general area security lighting.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
