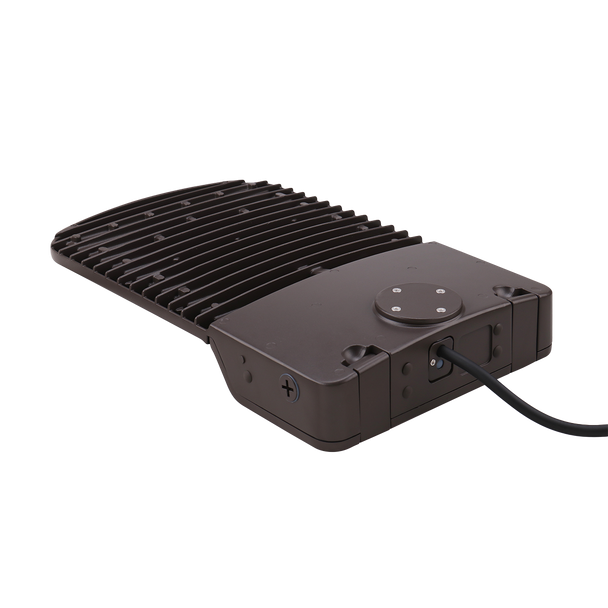

EiKO AAL1 Area Light, 150/130/100W, 3000K, Type V, 120-277V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, 150/130/100W, 3000K, Type V, 120-277V

Now: $84.62
Reg: $169.23
Sale 50%
You save $ 84.61
  • SKU: E-AAL1-PS150-30T5-U
  • MPN: AAL1-PS150-30T5-U

Quick Overview

Architectural LED area light with PowerSet 150/130/100W output, 3000K CCT, and Type V distribution for parking lots, campuses, and roadway lighting. Delivers up to 21,000 lumens at 140 lm/W with 0-10V dimming and IP65/IK08 protection.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 series is a high-performance architectural area light designed for demanding outdoor site lighting. Built for flexibility, it combines selectable power options, robust environmental protection, and controls-ready functionality in a slim-profile form factor. In EiKO’s lineup, the AAL1 stands out as a versatile solution for both retrofit and new construction projects.

Key Features and Benefits

  • PowerSet technology enables field selection of 150W, 130W, or 100W to match light levels and reduce energy use.
  • Controls-ready design with screw-in receptacle simplifies future upgrades to photocell or networked controls.
  • Durable outdoor construction with IP65 ingress protection and IK08 impact resistance for long-term reliability.
  • High efficacy performance up to 140 lm/W helps lower operating costs while maintaining strong illumination.
  • Certified for broad project acceptance: UL Listed, DLC Premium, FCC, and RoHS compliant.
  • Backed by a 5-year limited warranty for added project confidence.

Specifications

  • Lumen Output: 21000|18200|14000
  • Wattage: 150W|130W|100W
  • Voltage: 120-277V
  • Color Temperature: 3000K
  • CRI: 80
  • Dimming Type: 0-10V
  • Frequency (Hz): 50/60
  • Power Factor: 0.9
  • THD: 20
  • Distribution Type: Type V
  • Rated Life (70 Hours): 100000
  • Max Ambient Temperature: 50°C
  • Housing Material: Die-cast aluminum
  • Lens Material: Polycarbonate
  • Finish / Color: Bronze
  • IP Rating: IP65
  • IK Rating: IK08

Common Uses

Ideal for parking areas, roadways, campuses, automotive dealerships, airports, streetscapes, building facades, entryways, and general area security lighting where dependable, high-output illumination is required.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
