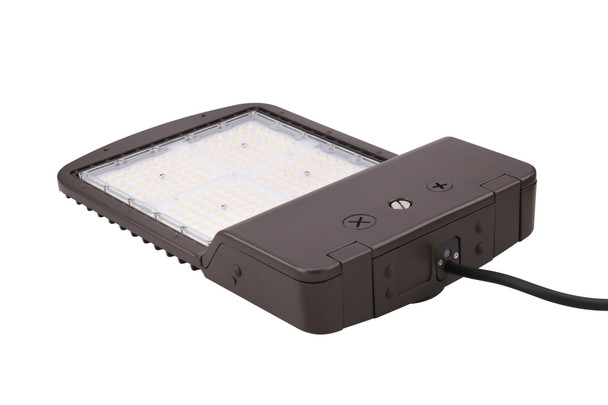

EiKO AAL1 Area Light, Power Selectable 150/130/100W, FieldCCeT 3000/4000/5000K, 120-277V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, Power Selectable 150/130/100W, FieldCCeT 3000/4000/5000K, 120-277V

$246.00 - $402.10
  • SKU: E-AAL1-PS150-FCCT-U
  • MPN: AAL1-PS150-FCCT-U

Quick Overview

Architectural LED area light with PowerSet 150/130/100W and FieldCCeT 3000/4000/5000K. Delivers up to 21,000 lumens at 140 lm/W, 0-10V dimming, IP65/IK08 protection, and DLC Premium performance.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 Series is a high-performance architectural area light designed for demanding outdoor site lighting. Built for flexibility, this configuration combines selectable wattage and selectable CCT in one fixture to simplify stocking and field adjustments. As part of EiKO’s premium outdoor lineup, it delivers strong efficacy, robust environmental protection, and controls-ready functionality.

Key Features and Benefits

  • PowerSet output lets you choose 150W, 130W, or 100W in the field for easier project tuning
  • FieldCCeT technology provides 3000K, 4000K, or 5000K selection in one fixture
  • Controls-ready design with screw-in receptacle supports standalone or networked control upgrades
  • Rugged outdoor build with IP65 ingress protection, IK08 impact resistance, and 3G vibration rating
  • Certified for broad project acceptance: UL Listed, DLC Premium, RoHS, FCC, and ICES-005 compliant
  • Backed by a 5-year limited warranty for long-term confidence

Specifications

  • Lumen Output: 21000/18200/14000
  • Wattage: 150W/130W/100W
  • Voltage: 120-277V
  • Color Temperature: 3000K/4000K/5000K
  • CRI: 80+
  • Dimming: 0-10V, dim-to-off
  • Efficacy: 140 lm/W
  • Distribution: Type II/Type IV
  • Rated Life (L70): 100000 hours
  • Operating Temperature: -40�b0C to 50�b0C
  • Housing: Die-cast aluminum
  • Lens: UV- and impact-resistant polycarbonate

Common Uses

Ideal for parking lots, roadways, campuses, airports, auto dealerships, streetscapes, building facades, entryways, signage illumination, and general area security lighting.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
