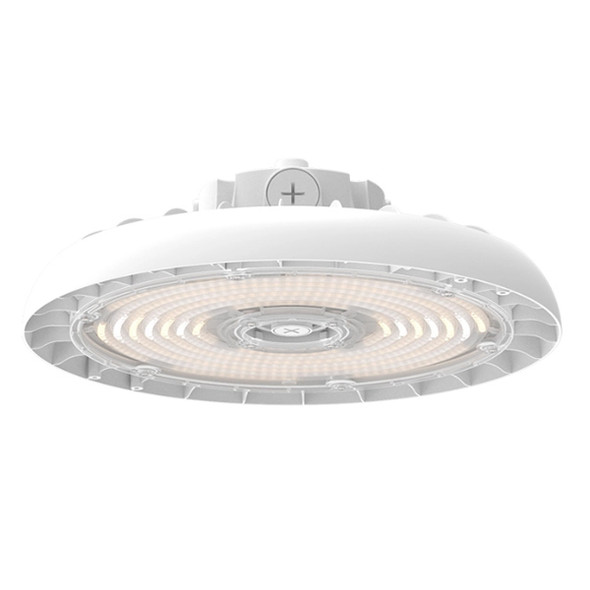

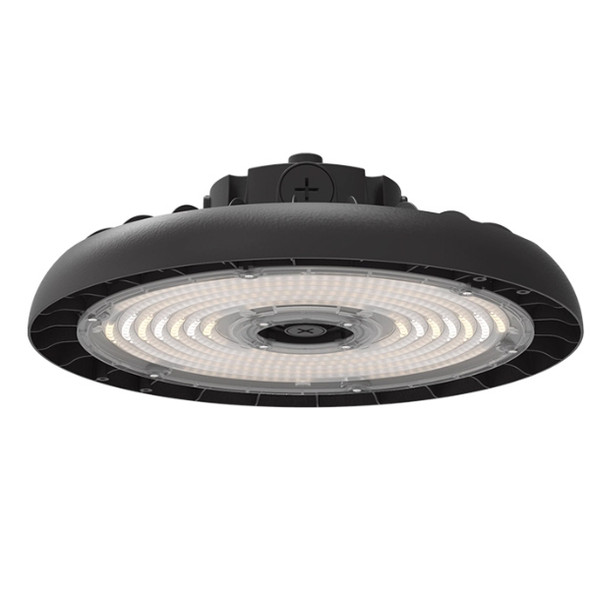

ILP RB5S Round High Bay, 9L/12L/15L Lumen Selectable, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens

By Industrial Lighting Products
ILP RB5S Round High Bay, 9L/12L/15L Lumen Selectable, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens
ILP RB5S Round High Bay, 9L/12L/15L Lumen Selectable, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens
ILP RB5S Round High Bay, 9L/12L/15L Lumen Selectable, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens
ILP RB5S Round High Bay, 9L/12L/15L Lumen Selectable, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ILP RB5S Round High Bay, 9L/12L/15L Lumen Selectable, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens

$121.60
  • SKU: ILP-RB5S-9L/12L/15L-U-CCTS-PCL
  • MPN: RB5S-9L/12L/15L-U-CCTS-PCL

Quick Overview

Selectable round LED high bay for warehouses and industrial spaces, offering 9,000/12,000/15,000 lm, 3500K/4000K/5000K CCT, 120-277V input, 0-10V dimming, IP65/IK10 durability, and up to 171.8 lm/W.

ETL Listed
DLC Standard
Title 24 Compliant
NSF Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK10
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP RB5S Round High Bay is a versatile, performance-driven fixture in ILP’s RB5 lineup, designed for demanding commercial and industrial environments. With field-selectable lumen packages and CCT settings, it simplifies stocking while delivering tailored light levels for each application.

Key Features and Benefits

  • Field-selectable output and CCT for flexible on-site configuration and reduced SKU complexity.
  • Rugged IP65 sealed construction with IK10 impact resistance for wet and harsh locations.
  • High-efficiency LED platform with 0-10V dimming support for energy savings and control integration.
  • Multiple mounting pathways including hook, pendant, cable, and surface options for installation flexibility.
  • Certified performance with ETL Listed wet-location rating, RoHS compliance, NSF option, LM-79/LM-80 testing, and Title 24 compliance support.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 9009|9910|9188|11751|12927|11984|14963|16460|15260
  • Wattage: 56W|75W|97W
  • Voltage: 120-277V
  • Color Temperature: 3500K|4000K|5000K
  • CRI: 80
  • Dimming Type: 0-10V
  • Frequency (Hz): 50/60
  • Power Factor: 0.90
  • THD: 20
  • Efficacy (lm/W): 180
  • Rated Life (70 Hours): 100000
  • IP Rating: IP65
  • IK Rating: IK10
  • Housing Material: Cold forged die-cast aluminum
  • Lens Material: Polycarbonate
  • Finish / Color: White|Black
  • Max Ambient Temperature: 122°F

Common Uses

Ideal for warehouses, distribution centers, manufacturing plants, gymnasiums, fitness centers, grocery facilities, food processing areas, and other wet-location commercial or industrial interiors.

RESOURCES AND DOWNLOADS

ILP RB5S Round High Bay Spec Sheet
