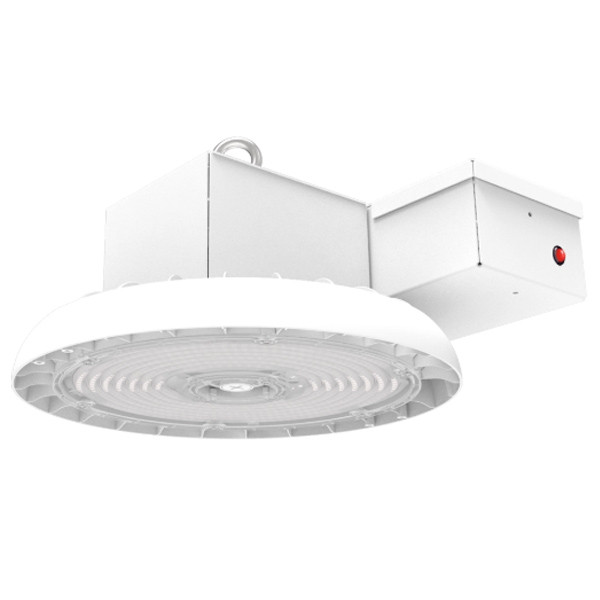

Industrial Lighting Products RB5 Kinetic Light Bay, RB5L Large Round High Bay, 26000 Lumens, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens, Universal Hook & Cord Mount w/ 3/4" IP Pendant Adapter

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products RB5 Kinetic Light Bay, RB5L Large Round High Bay, 26000 Lumens, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens, Universal Hook & Cord Mount w/ 3/4" IP Pendant Adapter

$512.30
  • SKU: ILP-RB5L-26L-U-CCTS-PCL-KLB
  • MPN: RB5L-26L-U-CCTS-PCL-BLK-KLB

Quick Overview

RB5L Kinetic Light Bay LED high bay delivers 26,000 lumens with selectable 3500K/4000K/5000K CCT, 120-277V input, 0-10V dimming, IP65 optics, and IK10 impact resistance for demanding industrial and warehouse spaces.

Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
IP65
IK10
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP RB5 Kinetic Light Bay is a performance-driven round LED high bay designed for industrial and commercial facilities that need reliable, high-output illumination. As part of ILP’s RB5 lineup, it combines selectable CCT flexibility, rugged construction, and efficient operation to simplify specification across varied applications.

Key Features and Benefits

  • Selectable CCT (3500K/4000K/5000K) supports easy field tuning for different visual tasks and environments.
  • Rugged die-cast aluminum body with IK10-rated polycarbonate lens helps withstand impact in demanding spaces.
  • IP65 sealed optical chamber protects performance in dusty or moisture-prone areas.
  • 0-10V dimming compatibility enables energy savings and control integration.
  • Tested to LM-79 and LM-80 standards and compliant with RoHS and Title 24 requirements.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 26074 (at 5000K, PCL)
  • Wattage: 168W
  • Voltage: 120-277V, 50/60Hz
  • CRI: 80 minimum
  • Power Factor: >0.90
  • THD: <20%
  • Rated Life (L70): >100,000 hours
  • Dimming: 0-10V (10%-100%)
  • Surge Protection: 6kV minimum
  • Ambient Temperature: up to 45b0C (RB5L-26L)
  • Mounting: Hook and cord mount with 3/4" IP pendant adapter
  • Housing Material: Die-cast aluminum with polyester powder coat
  • Lens Material: Clear polycarbonate
  • Ingress/Impact Rating: IP65, IK10

Common Uses

Ideal for warehouses, manufacturing plants, distribution centers, gymnasiums, fitness centers, grocery facilities, and educational buildings requiring durable, high-efficacy high bay lighting.
