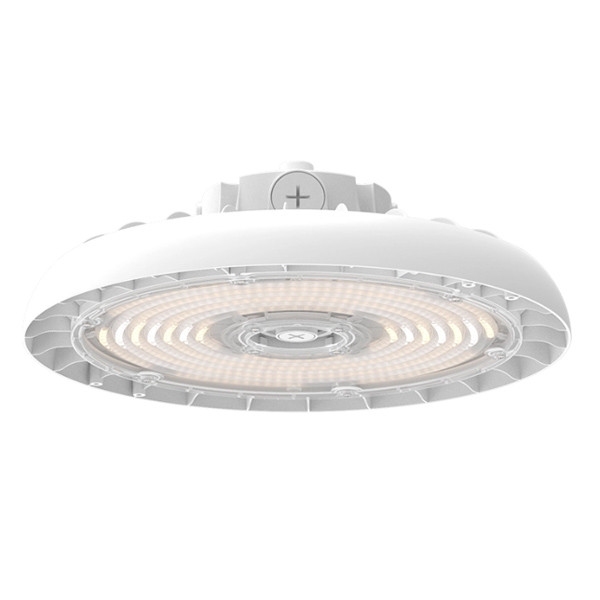

RB5S Round High Bay, 9000 lm, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

RB5S Round High Bay, 9000 lm, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens

$129.25
  • SKU: ILP-RB5S-9L-U-CCTS-PCL
  • MPN: RB5S-9L-U-CCTS-PCL

Quick Overview

Compact round LED high bay with selectable 3500K/4000K/5000K CCT, 9000 lm output, 120-277V input, IP65/IK10 protection, and 0-10V dimming for warehouses, gyms, and wet-location industrial spaces.

ETL Listed
Title 24 Compliant
NSF Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK10
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP RB5S Round High Bay is a compact, performance-driven fixture in ILP’s RB5 lineup, built for demanding commercial and industrial environments. This configurable high bay combines selectable CCT, robust ingress protection, and efficient LED performance to support modern facility lighting upgrades.

Key Features and Benefits

  • Selectable CCT (3500K/4000K/5000K) enables on-site tuning for visual comfort and task visibility.
  • Rugged IP65 sealed construction with IK10 impact resistance helps withstand moisture, dust, and harsh operating conditions.
  • 0-10V dimming compatibility supports energy-saving controls and occupancy/daylight strategies.
  • Cold-forged die-cast aluminum body with polyester powder coat finish delivers long-term durability and corrosion resistance.
  • Certified for demanding projects with ETL Listed, RoHS, NSF Rated, LM-79 Tested, LM-80 Tested, and Title 24 Compliant credentials.
  • Backed by a 5-year standard warranty, with optional 10-year coverage.

Specifications

  • Lumen Output: 9000
  • Wattage: 56W
  • Voltage: 120-277V
  • Color Temperature: 3500K|4000K|5000K
  • CRI: 80
  • Dimming Type: 0-10V (10%-100%)
  • Frequency: 50/60
  • Power Factor: 0.90
  • THD: 20
  • Ingress/Impact Rating: IP65, IK10
  • Rated Life (L70): 100000
  • Operating Temperature (Standard): -40°F to 122°F
  • Lens Material: Polycarbonate (clear)
  • Housing Material: Die-cast aluminum
  • Finish: White or Black powder coat

Common Uses

Ideal for warehouses, distribution centers, manufacturing plants, gymnasiums, fitness centers, grocery facilities, food processing areas, educational buildings, and other wet-location or high-demand indoor spaces.

RESOURCES AND DOWNLOADS

RB5S Round High Bay Spec Sheet
