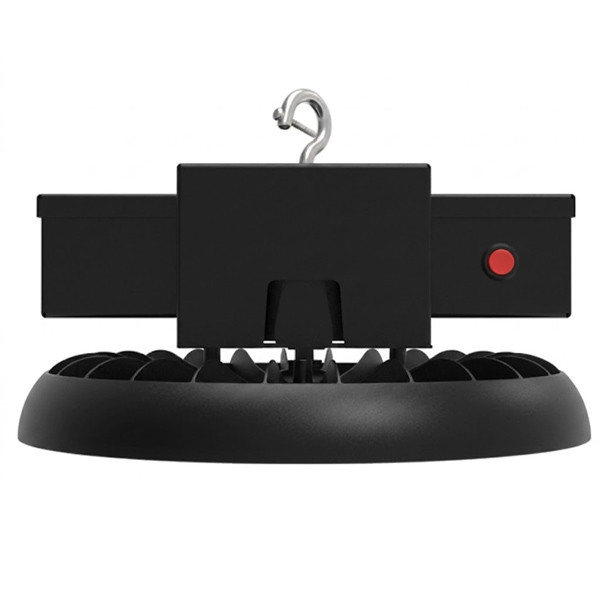

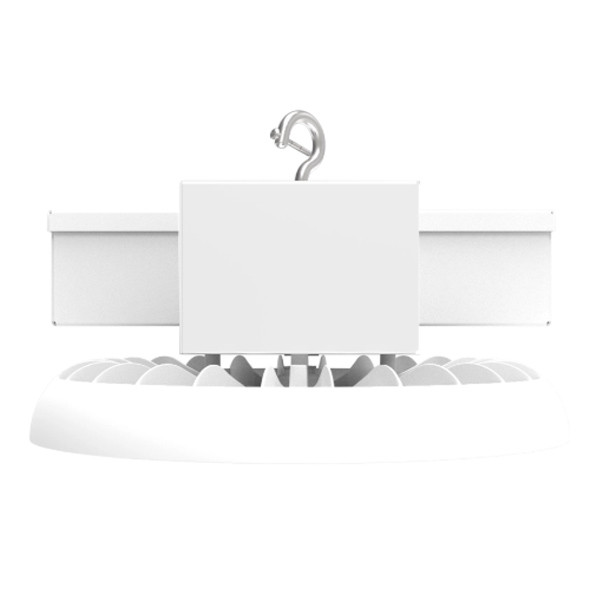

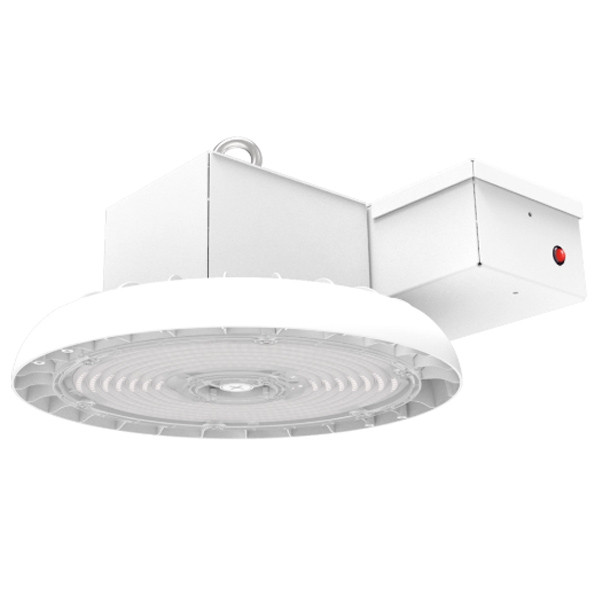

ILP RB5S Round High Bay, 9L/12L/15L Lumen Selectable, 120-277V, 3500K/4000K/5000K CCT Selectable, Clear Polycarbonate Lens, NSF Rated

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ILP RB5S Round High Bay, 9L/12L/15L Lumen Selectable, 120-277V, 3500K/4000K/5000K CCT Selectable, Clear Polycarbonate Lens, NSF Rated

$466.15
  • SKU: ILP-RB5S-9L/12L/15L-U-CCTS-PCL-KLB
  • MPN: RB5S-9L/12L/15L-U-CCTS-PCL-WHT-KLB

Quick Overview

Selectable round LED high bay for warehouses and industrial spaces with 9,000/12,000/15,000 lm output, 3500K/4000K/5000K CCT, 120-277V input, 0-10V dimming, IP65/IK10 durability, and NSF suitability.

ETL Listed
Title 24 Compliant
NSF Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK10
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP RB5S Round High Bay is a rugged, configurable fixture in ILP’s 5th generation high bay lineup, designed for demanding commercial and industrial environments. This model combines selectable lumen packages and field-selectable CCT in one fixture, helping contractors and facility teams simplify stocking while dialing in performance on site.

Key Features and Benefits

  • Selectable light output (9L/12L/15L) and CCT tuning (3500K/4000K/5000K) for flexible project deployment
  • Built for harsh spaces with IP65 ingress protection, IK10 impact resistance, and corrosion-tested powder coat housing
  • Energy-saving operation with high efficacy and smooth 0-10V dimming from 10% to 100%
  • Certified for demanding applications with ETL wet-location listing, NSF rating, RoHS compliance, LM-79/LM-80 testing, and Title 24 compliance
  • Backed by a 5-year standard warranty for long-term reliability

Specifications

  • Lumen Output: 9009|9910|9188|11751|12927|11984|14963|16460|15260
  • Wattage: 56W|75W|97W
  • Voltage: 120-277V
  • Color Temperature: 3500K|4000K|5000K
  • CRI: 80
  • Power Factor: 0.90
  • THD: 20
  • Frequency: 50/60
  • Rated Life (L70): 100000
  • Ingress/Impact Rating: IP65, IK10
  • Housing Material: Die-cast aluminum
  • Lens Material: Polycarbonate (clear)

Common Uses

Ideal for warehouses, distribution centers, manufacturing plants, gymnasiums, grocery facilities, food processing areas, and other wet or high-demand indoor environments requiring durable, high-output illumination.

RESOURCES AND DOWNLOADS

ILP RB5S Round High Bay Spec Sheet
