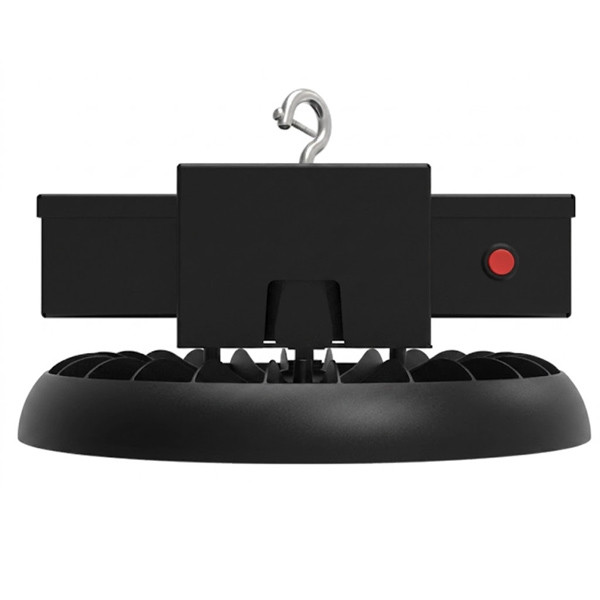

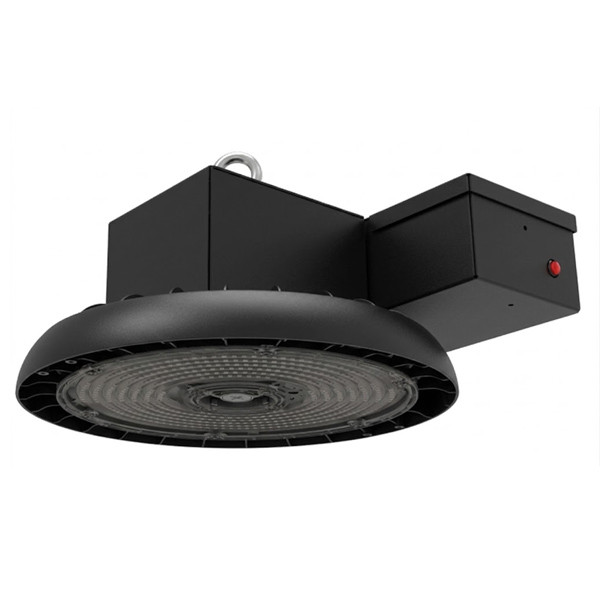

RB5 Kinetic Light Bay, Large Round High Bay, 30000 Lumens, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens, Universal Hook & Cord Mount with 3/4" IP Pendant Adapter

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

RB5 Kinetic Light Bay, Large Round High Bay, 30000 Lumens, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens, Universal Hook & Cord Mount with 3/4" IP Pendant Adapter

$512.30
  • SKU: ILP-RB5L-30L-U-CCTS-PCL-KLB
  • MPN: RB5L-30L-U-CCTS-PCL-BLK-KLB

Quick Overview

Selectable-output LED high bay for warehouses and industrial spaces with up to 31,738 lumens, 188W, 120-277V input, 3500K/4000K/5000K CCT selection, 0-10V dimming, IP65 optics, and IK10 impact resistance.

DLC Standard
Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
IP65
IK10
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP RB5 Kinetic Light Bay is a performance-driven round high bay designed for demanding commercial and industrial environments. This RB5L configuration combines high lumen output, selectable CCT, and rugged construction to support efficient, comfortable illumination in large indoor spaces. As part of ILP’s RB5 lineup, it delivers flexible specification options for both new construction and retrofit projects.

Key Features and Benefits

  • Field-selectable 3500K/4000K/5000K CCT enables on-site tuning for visual comfort and task needs.
  • High-output 30,000-lumen package with strong efficacy helps reduce energy use versus legacy HID high bays.
  • Durable die-cast aluminum body with IK10 impact-rated polycarbonate lens stands up to harsh operating conditions.
  • 0-10V dimming compatibility supports advanced lighting controls and energy code strategies.
  • IP65 sealed optical chamber protects performance in dusty or moisture-prone interiors.
  • Backed by a 5-year standard warranty and tested to LM-79/LM-80 with RoHS and Title 24 compliance support.

Specifications

  • Lumen Output: 28850 (3500K) / 31738 (4000K) / 29424 (5000K)
  • Wattage: 188W
  • Voltage: 120-277V, 50/60Hz
  • CRI: 80 minimum
  • Power Factor: >0.90
  • THD: <20%
  • Rated Life (L70): >100,000 hours
  • Dimming: 0-10V (10%-100%)
  • Max Ambient Temperature: 40°C
  • Lens: Clear polycarbonate (PCL)
  • Housing: Die-cast aluminum with black polyester powder coat
  • Mounting: Universal hook and cord mount with 3/4" IP pendant adapter

Common Uses

Ideal for warehouses, manufacturing plants, distribution centers, gymnasiums, fitness centers, grocery facilities, and educational high-bay applications requiring robust, efficient overhead lighting.

RESOURCES AND DOWNLOADS

RB5 Kinetic Light Bay Spec Sheet
