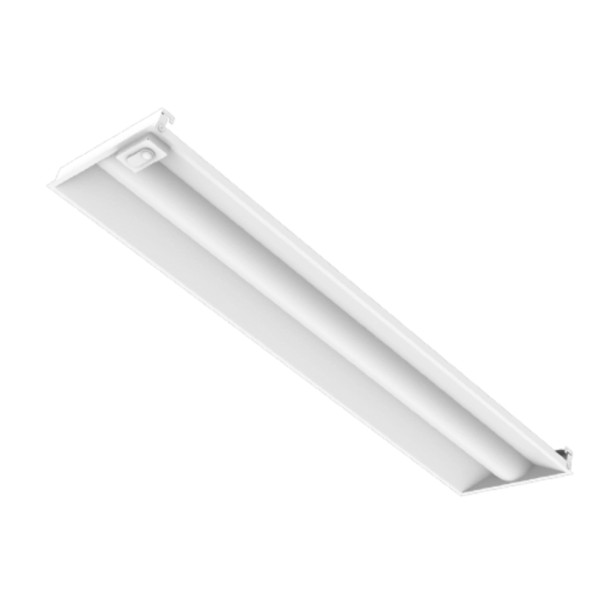

ILP VST Volumetric Selectable Troffer, 1x4, 3979-4178 lumens, 28W, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ILP VST Volumetric Selectable Troffer, 1x4, 3979-4178 lumens, 28W, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2

$83.10
  • SKU: ILP-VST14-40L-U-CCTS-G2
  • MPN: VST14-40L-U-CCTS-G2

Quick Overview

ILP VST 1x4 volumetric selectable troffer delivers 3979-4178 lumens at 28W with 120-277V input, 5 CCT options, 0-10V dimming, and low-profile 2.1" depth for education, healthcare, office, and retail spaces.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VST Volumetric Selectable Troffer is a low-profile architectural lay-in fixture designed for modern commercial interiors. As part of ILP’s Gen 2 VST lineup, it combines field-selectable light output and CCT flexibility with high efficacy performance for new construction and retrofit projects.

Key Features and Benefits

  • Field-selectable lumen package and 5-CCT tuning simplify stocking and on-site configuration.
  • Ultra-shallow 2.1" housing supports installations in tight plenum spaces.
  • 0-10V dimming (10%-100%) enables energy-saving control strategies and smooth light adjustment.
  • ETL Listed for US and Canada, Title 24 compliant with sensor option, and suitable for Type IC and damp locations.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 3979-4178
  • Wattage: 28W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: >80
  • Efficacy: 139-149 lm/W
  • Rated Life (L70): >100000 hours
  • Power Factor: >0.90
  • Ambient Operating Temperature: -20b0C to 40b0C (-4b0F to 104b0F)
  • Mounting: Recessed in 9/16" and 15/16" T-grid ceilings
  • Housing: Steel, matte white post-paint finish
  • Lens: Frosted polycarbonate

Common Uses

Ideal for education facilities, healthcare spaces, commercial offices, retail environments, and storage areas where efficient, uniform volumetric illumination and flexible controls are required.
