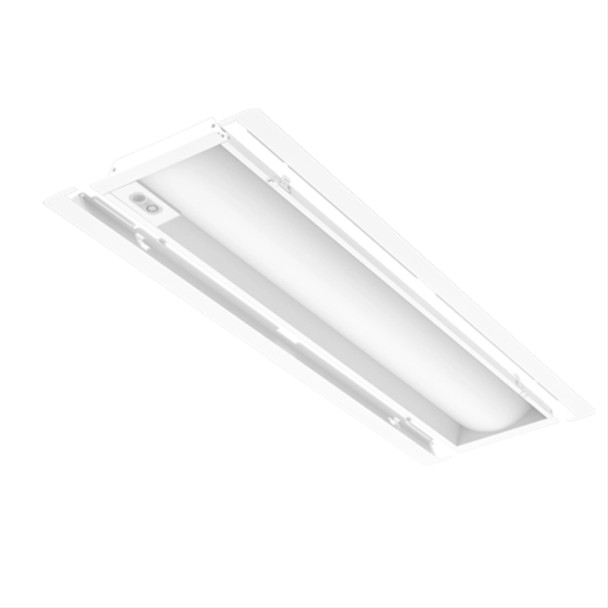

ILP VTK Volumetric Troffer Kit, 1x4, 3000lm, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2

By Industrial Lighting Products
ILP VTK Volumetric Troffer Kit, 1x4, 3000lm, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ILP VTK Volumetric Troffer Kit, 1x4, 3000lm, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2

$78.50
  • SKU: ILP-VTK14-30L-U-CCTS-G2
  • MPN: VTK14-30L-U-CCTS-G2

Quick Overview

1x4 volumetric troffer retrofit kit with field-selectable lumen output and CCT, 120-277V input, 0-10V dimming, up to 160 lm/W efficacy, and damp-location rating for commercial interior upgrades.

ETL Listed
Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VTK Gen 2 Volumetric Troffer Kit is a high-performance retrofit solution designed to modernize existing fluorescent troffers in commercial spaces. Built for fast installation and long-term reliability, this 1x4 kit combines selectable light output and color temperature flexibility in one streamlined platform. As part of ILP’s VTK lineup, it delivers energy savings, improved visual comfort, and controls-ready adaptability for evolving project needs.

Key Features and Benefits

  • Field-selectable lumen and CCT settings allow one SKU to cover multiple application requirements.
  • High efficacy performance (up to 160 lm/W) helps reduce operating costs versus legacy fluorescent systems.
  • Controls-ready architecture supports advanced sensor integration for occupancy and daylight-based energy savings.
  • ETL Listed for U.S. and Canadian safety standards and suitable for damp locations.
  • Backed by a 5-year standard warranty, with optional 10-year coverage available.

Specifications

  • Lumen Output: 2998|3065|3126|3145|3106
  • Wattage: 21W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • Dimming Type: 0-10V (10%-100%)
  • Power Factor: 0.90
  • Rated Life (L70): 100000
  • Max Ambient Temperature: 104b0F
  • Form Factor: 1x4
  • Housing Material: Steel
  • Fixture Depth Compatibility: 3 1/8" minimum troffer housing depth

Common Uses

Ideal for education facilities, commercial offices, healthcare spaces, retail environments, and storage facilities where existing troffers need an efficient LED retrofit with selectable output and future-ready controls compatibility.

RESOURCES AND DOWNLOADS

ILP VTK Volumetric Troffer Kit Spec Sheet
