Tangra 3" Gimbal Round Recessed Thin Trim, 4CCT + Dim to Warm 3500K to 2700K, CRI90

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Tangra 3" Gimbal Round Recessed Thin Trim, 4CCT + Dim to Warm 3500K to 2700K, CRI90

$128.90
  • SKU: LLL-L3G-RRT-4C90
  • MPN: L3G-RRT-4C90

Quick Overview

3" gimbal recessed thin trim downlight with 11W/15W selectable power, up to 1600lm, 20° tilt and 360° rotation, and 4CCT + dim-to-warm tuning for task, sloped ceiling, and wall wash applications.

  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

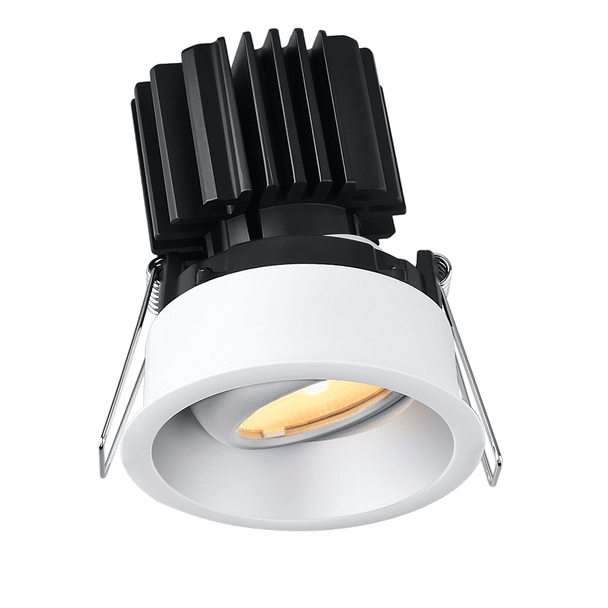

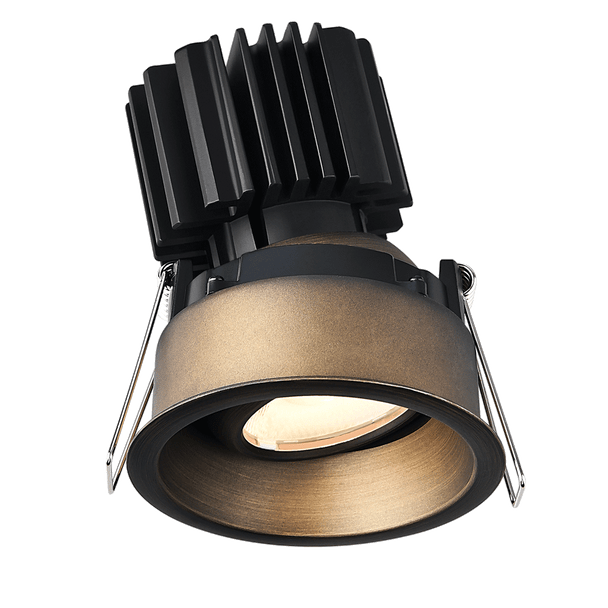

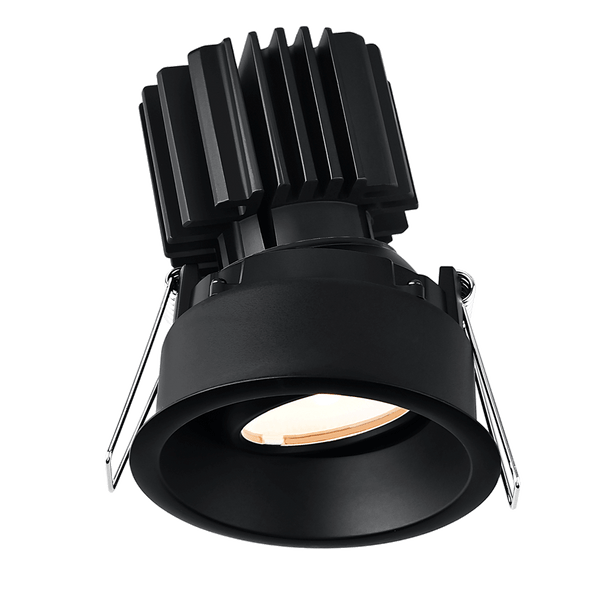

The Lotus LED Lights Tangra L3G-RRT series is a premium 3" gimbal round recessed thin trim fixture designed for precision accent and task lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers flexible beam control and high color quality for demanding residential and commercial spaces. Its modular platform supports multiple driver and optical configurations for tailored performance.

Key Features and Benefits

  • Adjustable aiming with 20° tilt and full 360° rotation for directional lighting control
  • 4CCT + Dim to Warm LED package transitions from 3500K to 2700K for comfortable ambiance
  • Selectable 11W/15W operation (with compatible Tangra drivers) to match output needs
  • Up to 1600lm performance for strong illumination in compact 3" apertures
  • Certified for Type IC, Air Tight, Open Plenum, and Wet Location IP54 installations
  • Long-term reliability backed by 70% lumen maintenance at 50,000 hours and extended Lotus line warranty support

Specifications

  • Series/Model: L3G-RRT Tangra 3" Gimbal Round Recessed Thin Trim
  • Beam options: 20°, 24°, 36°, 50°, 60° (20° reflector-only option)
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Input to fixture: 20-40V DC, max 350mA constant current
  • Driver options: 120V Triac dimmable or 120-347V 0-10V dimmable, 11W/15W selectable
  • Minimum dimming: 3% reverse phase cut / 4% forward phase cut
  • Operating temperature: -40°F to +113°F (-40°C to +45°C)
  • J-box wire capacity: max 5 #12 AWG or 8 #14 AWG with FT6/CMP cable
  • Cutout: 3"; required space above ceiling for driver: 4"

Common Uses

Ideal for task lighting, sloped ceilings up to 20°, and wall washing in residential, hospitality, retail, and commercial interiors where compact aperture, aiming flexibility, and high-quality color rendering are essential.
