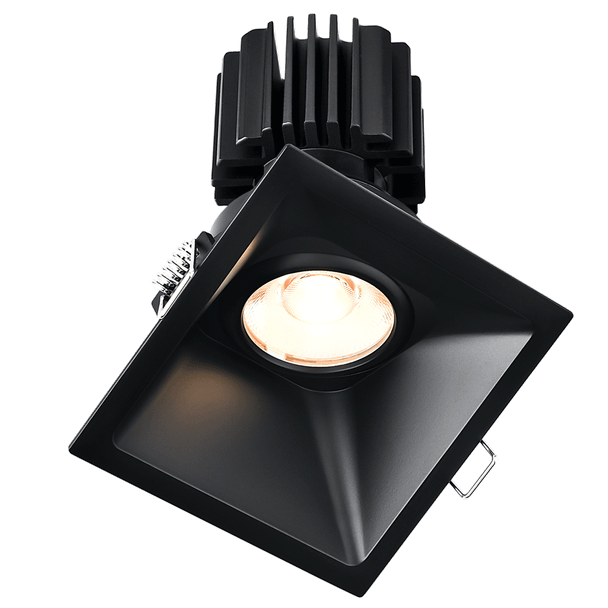

Tangra 4" Gimbal Square Sloped Thin Trim, 4CCT+DTW 3500K-2700K, CRI90

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Tangra 4" Gimbal Square Sloped Thin Trim, 4CCT+DTW 3500K-2700K, CRI90

$151.95
  • SKU: LLL-L3G-SST-4C90
  • MPN: L3G-SST-4C90

Quick Overview

4" gimbal square sloped thin trim downlight with 11W/15W selectable power, up to 1600 lumens, 20° tilt and 360° rotation, and 4CCT+DTW 3500K-2700K CRI90 for premium residential and commercial accent lighting.

IP54
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights Tangra L3G-SST is a premium 4" gimbal square sloped thin trim designed for precision accent and architectural lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers flexible aiming, high visual comfort, and excellent color quality for demanding spaces.

Key Features and Benefits

  • 30° angled trim supports sloped ceilings from 5° to 55° and wall washing applications
  • Directional performance with 20° tilt and full 360° rotation for precise beam aiming
  • Selectable 11W/15W operation with up to 1600 lumens for adaptable light levels
  • 4CCT + Dim-to-Warm tuning (3500K to 2700K) with CRI90 for warm, high-quality illumination
  • cETLus and FCC listed with Type IC, Airtight, Open Plenum, and Wet Location IP54 ratings
  • Long-term reliability backed by 50,000-hour L70 life and Lotus lifetime line warranty plus 5 years

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W/15W selectable
  • Voltage: 120V (Triac driver) | 120-347V (0-10V driver)
  • Beam Angle: 20° | 24° | 36° | 50° | 60°
  • Color Temperature: 3500K-2700K (4CCT+DTW option)
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • CRI: 90
  • Fixture Input: 20-40V DC, max 350mA constant current
  • Dimming: Triac (3% reverse phase / 4% forward phase cut) or 0-10V by driver selection
  • Max Ambient Temperature: +113°F (+45°C)
  • Rated Life (L70): 50,000 hours
  • IP Rating: IP54

Common Uses

Ideal for upscale residential interiors, hospitality spaces, retail displays, galleries, and commercial projects requiring sloped-ceiling compatibility, adjustable accent lighting, and refined square trim aesthetics.
