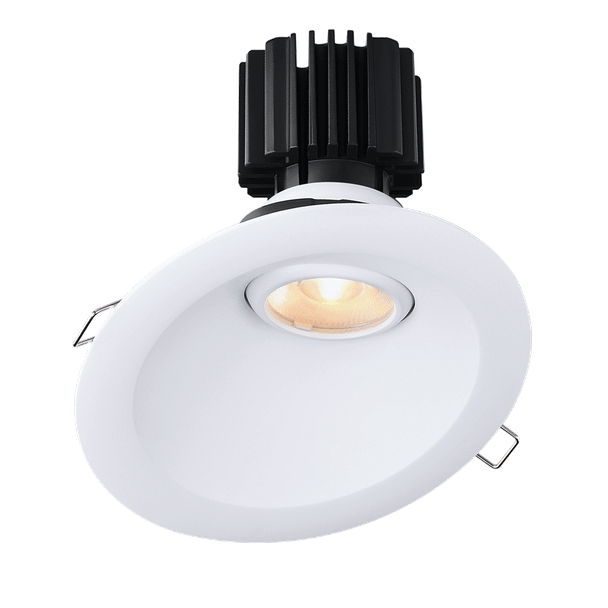

Tangra 4" Gimbal Round Sloped Wide Trim, 4CCT + DTW 3500K to 2700K, CRI90

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Tangra 4" Gimbal Round Sloped Wide Trim, 4CCT + DTW 3500K to 2700K, CRI90

$144.25
  • SKU: LLL-L3G-RSW-4C90
  • MPN: L3G-RSW-4C90

Quick Overview

4" adjustable gimbal recessed fixture for sloped ceilings and wall washing, featuring 11W/15W selectable power, up to 1600lm, 20° tilt with 360° rotation, and wet-location rated Type IC airtight construction.

  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights Tangra L3G-RSW is a 4" gimbal round sloped wide trim fixture engineered for premium directional lighting in demanding residential and commercial spaces. Built with a solid cast aluminum body and advanced optics, this modular series supports multiple beam, trim, and LED configurations for precise lighting control. Its high color quality and flexible driver options make it a standout solution in the Tangra lineup.

Key Features and Benefits

  • Adjustable aiming with 20° tilt and full 360° rotation for accent lighting, sloped ceilings, and wall washing
  • Selectable 11W/15W operation (with compatible Tangra driver) to balance output and energy use
  • High-performance light quality with up to 1600 lumens and ultra-high CRI LED options
  • Modular platform with multiple trims, optics, beam spreads, and CCT/DTW packages for project flexibility
  • Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54
  • Long-term reliability backed by 70% lumen maintenance at 50,000 hours and Lotus lifetime warranty coverage (+5 years after discontinuation)

Specifications

  • Model/Series: L3G-RSW, Tangra 4" Gimbal Round Sloped Wide Trim
  • Part number configuration: 4C90 LED package (4CCT + DTW 3500K to 2700K, CRI90)
  • Lumen output: up to 1600 lm (at 3000K CRI95)
  • Beam options: 20°, 24°, 36°, 50°, 60° (20° reflector-only option)
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Input to fixture: 20-40V DC, max 350 mA constant current
  • Driver options: 120V Triac dimmable or 120-347V 0-10V dimmable, 11W/15W selectable
  • Minimum dimming: 3% reverse phase cut / 4% forward phase cut
  • Ceiling cutout: 4 1/2"; required driver clearance above ceiling: 4"
  • Operating temperature: -40°F (-40°C) to +113°F (+45°C)
  • J-box wire capacity: max 5 x 12 AWG or 8 x 14 AWG with FT6/CMP cable

Common Uses

Ideal for sloped ceilings, feature walls, and directional accent lighting in homes, hospitality spaces, retail environments, corridors, and covered outdoor or wet-location applications requiring high-quality adjustable illumination.
