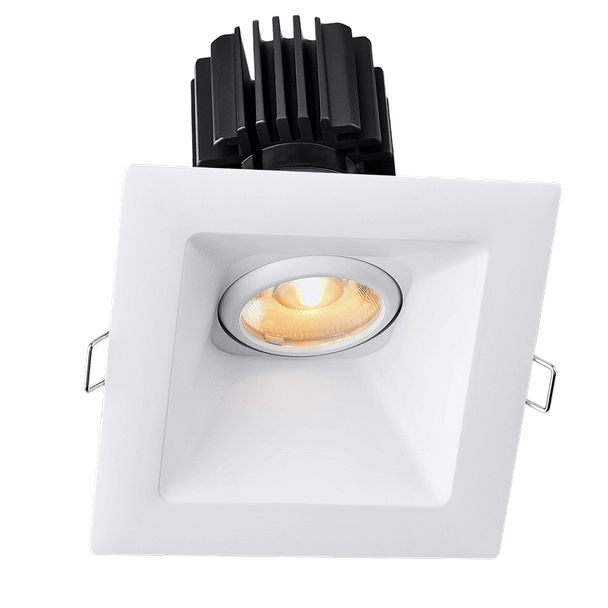

Lotus Tangra 4" Gimbal Square Sloped Wide Trim, 4CCT+DTW 3500K-2700K, CRI90

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus Tangra 4" Gimbal Square Sloped Wide Trim, 4CCT+DTW 3500K-2700K, CRI90

$151.95
  • SKU: LLL-L3G-SSW-4C90
  • MPN: L3G-SSW-4C90

Quick Overview

4" adjustable square recessed gimbal trim for sloped ceilings and wall washing, with 11W/15W selectable power, up to 1600 lumens, 4CCT+DTW 3500K-2700K, CRI90, wet location IP54, and IC airtight rating.

IP54
  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus Tangra L3G-SSW is a premium 4" gimbal square sloped wide trim designed for high-performance recessed lighting in architectural and residential spaces. Built with a solid cast aluminum body and advanced optics, this Canadian-made fixture delivers flexible aiming, excellent color quality, and dependable long-life operation. Its modular Tangra platform supports multiple driver and LED configurations, making it a versatile choice across project types.

Key Features and Benefits

  • 30° angled trim supports sloped ceilings from 5° to 55° and effective wall-wash lighting.
  • Adjustable optical system with 20° tilt and full 360° rotation for precise beam aiming.
  • Selectable 11W/15W operation (with compatible Tangra driver) balances output and energy use.
  • Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54.
  • Long-term reliability backed by Lotus lifetime warranty coverage (manufactured line + 5 years).

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W|15W
  • Voltage: 120V|120-347V (driver dependent)
  • Color Temperature: 3500K-2700K (4CCT+DTW version)
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • CRI: 90
  • Dimming: Triac or 0-10V (driver dependent), minimum dim level 3% reverse phase / 4% forward phase cut
  • Beam Angle: 20°|24°|36°|50°|60°
  • Fixture Input: 20-40V DC, max 350mA constant current
  • Rated Life: 70% light output at 50000 hours
  • Operating Temperature: -40°F (-40°C) to +113°F (+45°C)

Common Uses

Ideal for sloped ceilings, accent lighting, and wall washing in homes, hospitality spaces, retail environments, and other interior or protected exterior applications requiring directional recessed illumination.
