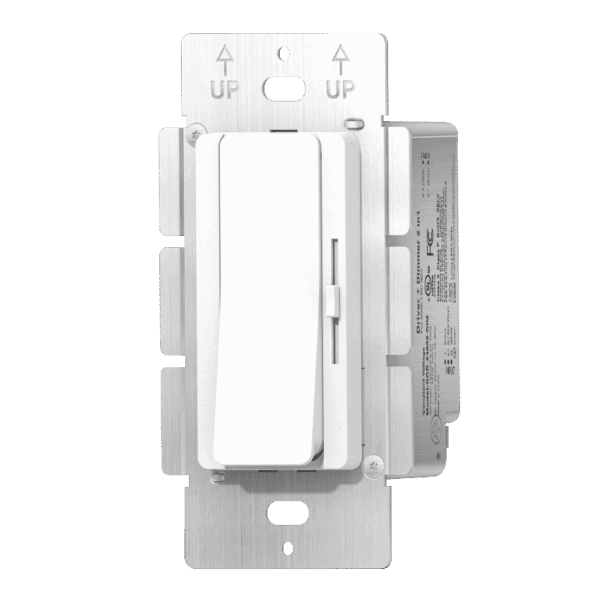

Lotus LED Lights 2-in-1 Driver + Dimmer, 24VDC, 60W, 120VAC, Single CCT/DTW, Single Pole or 3-Way, SDD-24060-DIM

By Lotus LED Lights
Lotus LED Lights 2-in-1 Driver + Dimmer, 24VDC, 60W, 120VAC, Single CCT/DTW, Single Pole or 3-Way, SDD-24060-DIM
Lotus LED Lights 2-in-1 Driver + Dimmer, 24VDC, 60W, 120VAC, Single CCT/DTW, Single Pole or 3-Way, SDD-24060-DIM
Lotus LED Lights 2-in-1 Driver + Dimmer, 24VDC, 60W, 120VAC, Single CCT/DTW, Single Pole or 3-Way, SDD-24060-DIM
Lotus LED Lights 2-in-1 Driver + Dimmer, 24VDC, 60W, 120VAC, Single CCT/DTW, Single Pole or 3-Way, SDD-24060-DIM
Lotus LED Lights 2-in-1 Driver + Dimmer, 24VDC, 60W, 120VAC, Single CCT/DTW, Single Pole or 3-Way, SDD-24060-DIM
Lotus LED Lights 2-in-1 Driver + Dimmer, 24VDC, 60W, 120VAC, Single CCT/DTW, Single Pole or 3-Way, SDD-24060-DIM

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus LED Lights 2-in-1 Driver + Dimmer, 24VDC, 60W, 120VAC, Single CCT/DTW, Single Pole or 3-Way, SDD-24060-DIM

$121.25
  • SKU: LLL-SDD-24060-DIM
  • MPN: SDD-24060-DIM

Quick Overview

2-in-1 constant voltage LED driver and dimmer for 24V single CCT and DTW fixtures, delivering 60W output with smooth 0.3%-100% PWM dimming for single-pole or 3-way installations in dry or damp locations.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights SDD-24060-DIM combines a 24V LED driver and wall dimmer into one compact control solution for low-voltage lighting systems. Designed for single CCT and dim-to-warm applications, it simplifies installation while improving dimming compatibility across 24V fixtures and tape lighting. This model is a practical choice in the Lotus lineup for clean electrical-box integration and dependable performance.

Key Features and Benefits

  • Integrated 2-in-1 architecture reduces component count by combining driver and dimmer in one device
  • Wide 0.3% to 100% dimming range enables precise light-level control for ambiance and task lighting
  • Supports both single-pole and 3-way wiring for flexible control layouts
  • Built-in protection package helps safeguard against short circuit, overload, over-voltage, and over-heat events
  • Certified to cULus, FCC, and UL Class P requirements for trusted code-compliant use
  • Backed by a 5-year warranty when paired with Lotus products

Specifications

  • Power: 60W
  • Input: 120VAC, 60Hz
  • Output: 24VDC, 2.5A
  • Voltage Adjustment: 24V to 26V (±0.5V)
  • Output Type: Constant Voltage PWM
  • THD: <10% at full load
  • Power Factor: >0.99 at full load
  • Efficiency: 91% at full load
  • PWM Frequency: 16kHz
  • Operating Temperature: -40°F (-40°C) to +140°F (+60°C)
  • Location Rating: Dry and Damp locations
  • Weight: 0.55 lbs

Common Uses

Ideal for 24V LED tape light systems, puck lights, step lights, and other low-voltage single CCT or dim-to-warm installations in residential and light commercial spaces where compact in-wall dimming and reliable driver performance are required.

RESOURCES AND DOWNLOADS

Lotus LED Lights 2-in-1 Driver + Dimmer Spec Sheet
