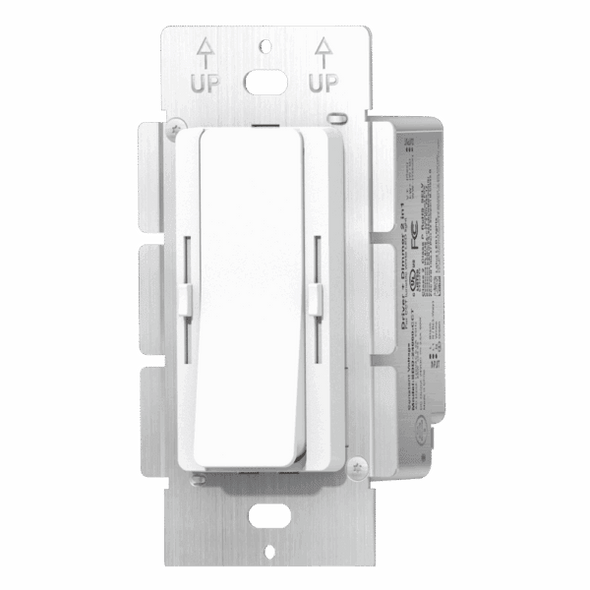

Lotus LED Lights Driver + Dimmer + Manual CCT Controller 3 in 1, 60W, 120V, 24V-26V, 2700K-5000K, Single Pole or 3-Way, SDD-24060-CCT

By Lotus LED Lights
Lotus LED Lights Driver + Dimmer + Manual CCT Controller 3 in 1, 60W, 120V, 24V-26V, 2700K-5000K, Single Pole or 3-Way, SDD-24060-CCT
Lotus LED Lights Driver + Dimmer + Manual CCT Controller 3 in 1, 60W, 120V, 24V-26V, 2700K-5000K, Single Pole or 3-Way, SDD-24060-CCT
Lotus LED Lights Driver + Dimmer + Manual CCT Controller 3 in 1, 60W, 120V, 24V-26V, 2700K-5000K, Single Pole or 3-Way, SDD-24060-CCT
Lotus LED Lights Driver + Dimmer + Manual CCT Controller 3 in 1, 60W, 120V, 24V-26V, 2700K-5000K, Single Pole or 3-Way, SDD-24060-CCT
Lotus LED Lights Driver + Dimmer + Manual CCT Controller 3 in 1, 60W, 120V, 24V-26V, 2700K-5000K, Single Pole or 3-Way, SDD-24060-CCT
Lotus LED Lights Driver + Dimmer + Manual CCT Controller 3 in 1, 60W, 120V, 24V-26V, 2700K-5000K, Single Pole or 3-Way, SDD-24060-CCT

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus LED Lights Driver + Dimmer + Manual CCT Controller 3 in 1, 60W, 120V, 24V-26V, 2700K-5000K, Single Pole or 3-Way, SDD-24060-CCT

$136.60
  • SKU: LLL-SDD-24060-CCT
  • MPN: SDD-24060-CCT

Quick Overview

3-in-1 Class 2 constant-voltage controller combining driver, dimmer, and manual CCT tuning for 24V tunable white LED tape. Delivers 60W output, 0.3%-100% dimming, and 2700K-5000K color control for dry or damp locations.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights SDD-24060-CCT is a compact 3-in-1 control solution that combines a constant-voltage LED driver, dimmer, and manual CCT controller in one device. Designed for tunable white 24V tape light systems, it simplifies installation while improving dimmer-to-driver compatibility in commercial and residential projects.

Key Features and Benefits

  • All-in-one design reduces component count by integrating driver, dimming, and CCT adjustment.
  • Manual slide control enables smooth tunable white adjustment from warm to cool light appearance.
  • Supports both single-pole and 3-way wiring for flexible wall-control layouts.
  • High electrical performance with strong power factor and low harmonic distortion for stable operation.
  • Certified to cULus safety standards and FCC requirements for dependable code-oriented installations.
  • Backed by a 5-year warranty for long-term reliability.

Specifications

  • Power: 60W
  • Input: 120V AC, 60Hz
  • Output: 24V DC / 2.5A
  • Voltage Adjustment: 24V to 26V (±0.5V)
  • Dimming Range: 0.3% to 100%
  • Power Factor: >0.99 at full load
  • THD: <10% at full load
  • Efficiency: 91% at full load
  • PWM Frequency: 16kHz
  • Operating Temperature: -40°F (-40°C) to +140°F (+60°C)
  • Location Rating: Dry and Damp locations
  • Protection: Short circuit, over-voltage, over-heat, over-load
  • Net Weight: 0.55 lbs

Common Uses

Ideal for tunable white LED tape installations in homes, hospitality spaces, retail displays, and light commercial interiors where wall-box control, smooth dimming, and adjustable white light are required.

RESOURCES AND DOWNLOADS

Lotus LED Lights Driver + Dimmer + Manual CCT Controller 3 in 1 Spec Sheet
