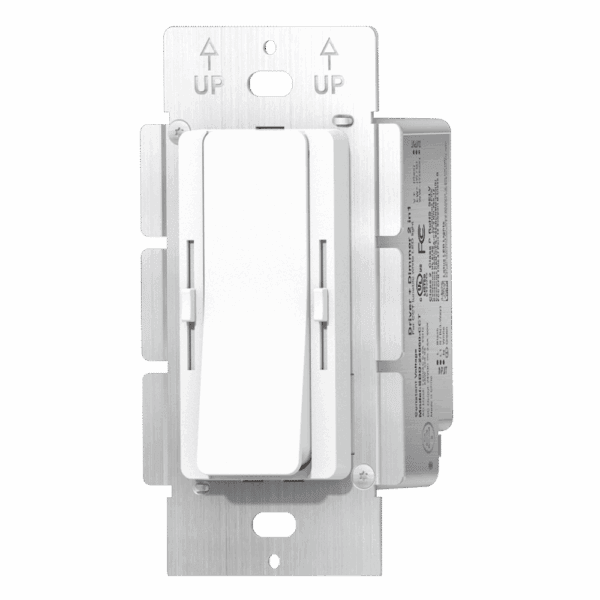

Lotus LED Lights Driver + Dimmer + Manual CCT Controller + Smart 4 in 1, 24VDC, 60W, Tunable White, Single Pole or 3-Way, SDD-24060P-WLCCT-TWB

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus LED Lights Driver + Dimmer + Manual CCT Controller + Smart 4 in 1, 24VDC, 60W, Tunable White, Single Pole or 3-Way, SDD-24060P-WLCCT-TWB

$156.55
  • SKU: LLL-SDD-24060P-WLCCT-TWB
  • MPN: SDD-24060P-WLCCT-TWB

Quick Overview

60W 24VDC tunable white LED controller/driver with integrated dimming and manual CCT adjustment (2700K-5000K), plus Smart Life app or Bluetooth control for single-pole or 3-way installations.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights SDD-24060P-WLCCT-TWB combines a constant-voltage driver, dimmer, manual CCT controller, and smart control into one compact in-box solution. Designed for tunable white 24V LED tape systems, it simplifies installation while improving dimmer-driver compatibility. This all-in-one control platform is a practical choice for modern residential and light commercial lighting upgrades.

Key Features and Benefits

  • 4-in-1 architecture integrates driver, dimming, CCT tuning, and smart control in one device
  • Supports smooth tunable white adjustment from warm to cool tones via slide control or app
  • Smart Life (Tuya) app and Bluetooth capability enable convenient wireless lighting control
  • Designed for single-pole or 3-way wiring flexibility in common wall-box applications
  • High electrical performance with strong power factor and low harmonic distortion
  • Backed by a 5-year warranty and certified to cULus, FCC, UL Class P, and Class 2 requirements

Specifications

  • Power: 60W
  • Input: 120VAC, 60Hz
  • Output: 24VDC, 2.5A
  • Output Voltage Adjustment: 24V-26V (±0.5V)
  • Dimming Range: 0.3%-100%
  • PWM Frequency: 16kHz
  • Efficiency: 91% at full load
  • Power Factor: >0.99 at full load
  • THD: <10% at full load
  • Operating Temperature: -40b0F to +140b0F (-40b0C to +60b0C)
  • Weight: 0.55 lbs

Common Uses

Ideal for 24V tunable white LED tape lighting in homes, hospitality spaces, accent lighting, and retrofit projects where wall-box integration, app control, and precise dim-to-color tuning are required.
