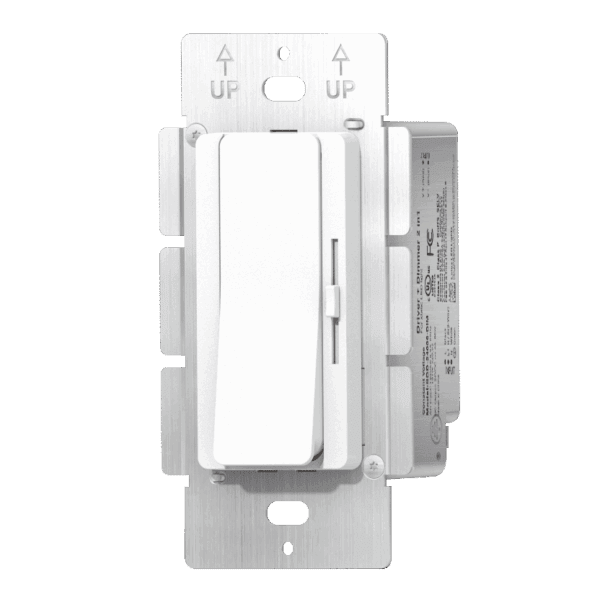

Lotus LED Lights SDD-24096-DIM, 96W, 120V, 24V DC, 0-10V, Single Pole or 3-Way

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus LED Lights SDD-24096-DIM, 96W, 120V, 24V DC, 0-10V, Single Pole or 3-Way

$182.65
  • SKU: LLL-SDD-24096-DIM
  • MPN: SDD-24096-DIM

Quick Overview

2-in-1 Class 2 driver and dimmer for 24V single CCT/DTW LED fixtures and tape, delivering 96W output with smooth 0.3%-100% dimming, high 0.99 power factor, and dry/damp location suitability.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights SDD-24096-DIM is a compact 2-in-1 driver and dimmer designed for 24V single CCT and dim-to-warm LED systems. Built for electrical box installation, it simplifies control architecture by combining power conversion and dimming in one unit. This model is a practical choice in the Lotus lineup for reliable low-voltage LED power with flexible wiring options.

Key Features and Benefits

  • Integrated driver + dimmer design helps avoid common dimmer/driver compatibility issues
  • Wide 0.3% to 100% dimming range supports smooth light level control
  • Single-pole or 3-way wiring capability adds installation flexibility
  • High performance electrical design with 91% efficiency and power factor over 0.99 at full load
  • Built-in protections for short circuit, over-voltage, over-heat, and over-load operation
  • Certified to cULus and FCC requirements with a 5-year warranty when used with Lotus products

Specifications

  • Power: 96W
  • Input Voltage/Frequency: 120V AC, 60Hz
  • Output: 24V DC, 4A
  • Output Type: Constant Voltage PWM
  • Voltage Adjustment: 24V to 26V (±0.5V)
  • THD: <10% at full load
  • PWM Frequency: 16kHz
  • Inrush Current: 50A, 150µs @ 50%
  • Leakage Current: <0.5mA
  • Operating Temperature: -40°F (-40°C) to +140°F (+60°C)
  • Weight: 0.55 lbs (0.25 kg)
  • Location Rating: Dry and Damp locations

Common Uses

Ideal for 24V DC LED tape lights, puck lights, step lights, and other single CCT or DTW fixtures in residential and commercial interiors. Commonly used in millwork lighting, accent lighting, stair illumination, and retrofit projects requiring compact in-box dimming control.
