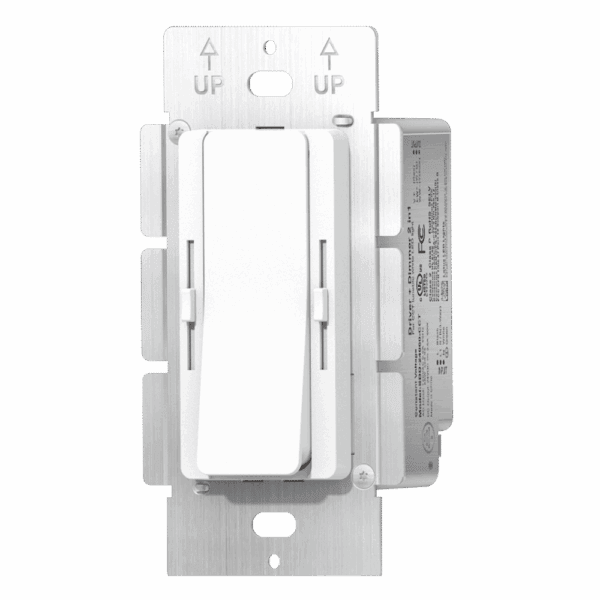

Lotus LED Lights SDD-24096P-WLCCT-TWB, 96W, 120V, 24V-26V, Tunable White 2700K-5000K, 0-10V

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus LED Lights SDD-24096P-WLCCT-TWB, 96W, 120V, 24V-26V, Tunable White 2700K-5000K, 0-10V

$193.35
  • SKU: LLL-SDD-24096P-WLCCT-TWB
  • MPN: SDD-24096P-WLCCT-TWB

Quick Overview

4-in-1 Class 2 constant-voltage LED driver, dimmer, and manual/smart CCT controller for 24V tunable white tape lights, delivering 96W with smooth 0.3%-100% dimming and single-pole or 3-way wiring.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights SDD-24096P-WLCCT-TWB is a versatile 4-in-1 control solution that combines a constant-voltage driver, dimmer, manual CCT slider, and smart app control in one compact unit. Designed for tunable white 24V LED tape systems, it simplifies installation while improving compatibility between controls and drivers. This model is a key option in Lotus’s tape lighting ecosystem for projects requiring flexible white light tuning and reliable performance.

Key Features and Benefits

  • All-in-one design integrates driver, dimmer, CCT control, and smart control to reduce component count
  • Supports smooth tunable white adjustment from warm to cool tones via onboard slider or Smart Life (Tuya)/Bluetooth app
  • Wide dimming span from 0.3% to 100% for precise scene setting and visual comfort
  • Single-pole or 3-way wiring capability for flexible wall-control layouts
  • Built-in protection suite includes short-circuit, over-voltage, over-heat, and over-load safeguards
  • Certified to cULus, FCC, UL Class P/Class 2 standards and backed by a 5-year warranty

Specifications

  • Power: 96W
  • Input: 120V AC, 60Hz
  • Output: 24V DC, 4A
  • Output Voltage Adjustment: 24V-26V (±0.5V)
  • Output Type: Constant Voltage PWM
  • PWM Frequency: 16kHz
  • Power Factor: >0.99 at full load
  • THD: <10% at full load
  • Efficiency: 91% at full load
  • Operating Temperature: -40b0F to +140b0F (-40b0C to +60b0C)
  • Weight: 0.55 lbs

Common Uses

Ideal for 24V DC tunable white LED tape light installations in residential and commercial interiors, including under-cabinet lighting, accent coves, display lighting, and other dry or damp location applications requiring app-based and wall-based control.
