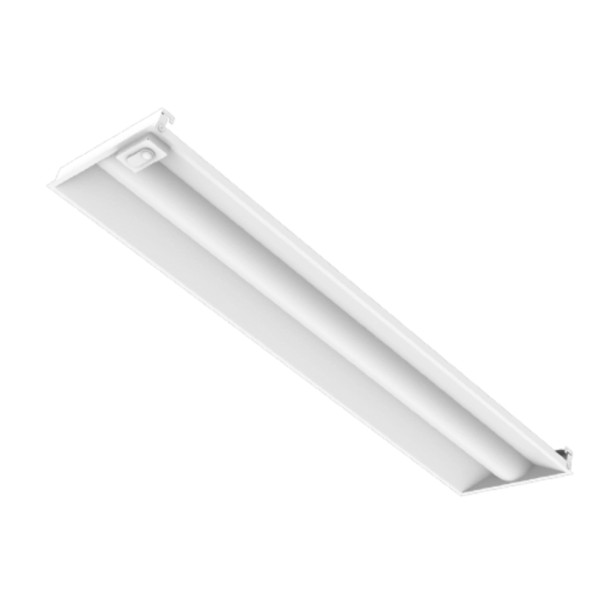

VST Volumetric Selectable Troffer, 1x4, 2000 lm, 14W, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Gen 2

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

VST Volumetric Selectable Troffer, 1x4, 2000 lm, 14W, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Gen 2

$83.10
  • SKU: ILP-VST14-20L-U-CCTS-G2
  • MPN: VST14-20L-U-CCTS-G2

Quick Overview

1x4 volumetric LED troffer with selectable 2000–4000 lm and 2700K–5000K CCT, 120-277V input, 0-10V dimming, IC and damp location rating, and up to 159 lm/W for offices, schools, healthcare, and retail spaces.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VST Series Volumetric Selectable Troffer delivers flexible, high-performance ambient lighting for modern commercial interiors. Designed as a low-profile Gen 2 platform, this 1x4 fixture combines field-selectable output and color tuning to simplify specification and stocking. It is a core ILP solution for education, healthcare, office, retail, and storage applications where visual comfort and efficiency are critical.

Key Features and Benefits

  • Field-selectable lumen package and CCT settings reduce SKU complexity and speed project deployment.
  • Ultra-shallow housing supports low plenum installations while maintaining a clean architectural appearance.
  • 0-10V dimming compatibility (10%-100%) enables energy-saving control strategies and occupancy/daylight integration.
  • ETL Listed for U.S. and Canada, Type IC rated, damp location suitable, and Title 24 compliant when paired with sensor options.
  • Backed by a standard 5-year warranty, with optional 10-year coverage for long-term confidence.

Specifications

  • Lumen Output: 2051|2102|2150|2173|2153 (20L across 2700K-5000K)
  • Wattage: 14W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: >80
  • Power Factor: >0.90
  • Rated Life (L70): >100000 hours
  • Ambient Temperature: -20b0C to 40b0C (-4b0F to 104b0F)
  • Lens Material: Frosted polycarbonate
  • Housing Material: Steel
  • Mounting: Recessed in 9/16" and 15/16" T-grid (optional flange and surface kits)

Common Uses

Ideal for classrooms, medical and healthcare spaces, commercial offices, retail floors, and storage facilities requiring efficient, uniform recessed troffer illumination with selectable performance.
