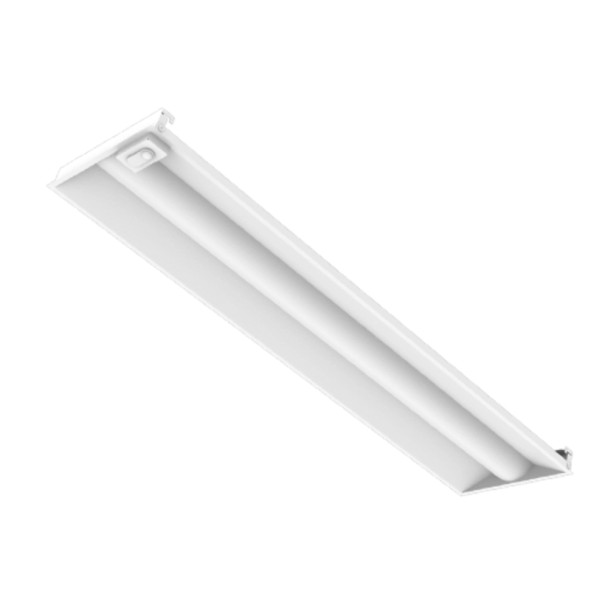

VST Volumetric Selectable Troffer, 1x4, 2500lm, 17W, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Gen 2

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

VST Volumetric Selectable Troffer, 1x4, 2500lm, 17W, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Gen 2

$83.10
  • SKU: ILP-VST14-25L-U-CCTS-G2
  • MPN: VST14-25L-U-CCTS-G2

Quick Overview

2x2 volumetric LED troffer for offices, schools, healthcare, and retail spaces with selectable 2500lm output, 17W power, 120-277V input, 0-10V dimming, and selectable 2700K-5000K CCT.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VST Volumetric Selectable Troffer is a low-profile architectural recessed fixture designed for modern commercial interiors. As part of ILP’s Gen 2 VST lineup, it combines field-selectable light levels and color temperatures with controls-ready flexibility for energy-conscious projects.

Key Features and Benefits

  • Selectable lumen and CCT platform simplifies stocking and on-site configuration
  • Ultra-shallow 2.1" housing supports installations in tight plenum spaces
  • 0-10V dimming (10%-100%) enables smooth light control and energy savings
  • ETL Listed for US and Canada, Title 24 compliant with sensor option, and Type IC rated for insulation contact
  • Backed by a 5-year standard warranty with optional 10-year coverage

Specifications

  • Lumen Output: 2500
  • Wattage: 17W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 80
  • Power Factor: 0.90
  • Rated Life (L70): 100000
  • Max Ambient Temperature: 40°C
  • Housing Material: Steel
  • Lens Material: Frosted polycarbonate
  • Mounting: Recessed in 9/16" or 15/16" T-grid (optional flange/surface kits)

Common Uses

Ideal for education facilities, healthcare buildings, commercial offices, retail stores, and storage areas where uniform volumetric illumination, low glare, and flexible control integration are required.
