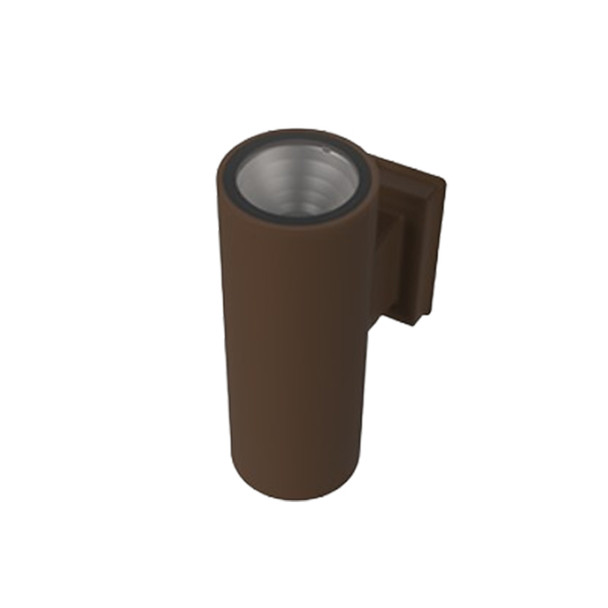

Green Creative EXCYL Wall Mount Cylinder, 3", Wall Mount Direct, Small Light Engine, 80+ CRI, Selectable 3000K/3500K/4000K, 0-10V Dimming, Clear Reflector

By Green Creative

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Green Creative EXCYL Wall Mount Cylinder, 3", Wall Mount Direct, Small Light Engine, 80+ CRI, Selectable 3000K/3500K/4000K, 0-10V Dimming, Clear Reflector

$231.85
  • SKU: GC-EXCYL3/WMD/S/8CCT3S/DIM010UNV/X/X/CC
  • MPN: EXCYL3/WMD/S/8CCT3S/DIM010UNV/X/X/CC

Quick Overview

3" outdoor wall-mount LED cylinder with selectable lumen output and CCT, 0-10V dimming, integrated photocell, IP65 wet-location rating, and 15°/25°/40°/60° beam options for architectural facade lighting.

ETL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Green Creative EXCYL Wall Mount Cylinder is a compact architectural outdoor fixture designed for flexible facade and perimeter illumination. As part of the EXCYL series, it combines selectable output, selectable CCT, and multiple beam distributions to simplify specification across varied project needs. Its robust die-cast construction and weather-sealed design make it a dependable choice for demanding exterior environments.

Key Features and Benefits

  • SelectDrive technology enables field-selectable light output levels for easier on-site tuning.
  • SelectKelvin switching provides 3000K, 3500K, or 4000K color temperature flexibility in one fixture.
  • Integrated photocell supports automatic dusk-to-dawn style ON/OFF control and can be deactivated when needed.
  • Architectural beam control with 15°, 25°, 40°, and 60° optics supports accent or broader wash effects.
  • ETL Listed for wet locations and FCC compliant for confident code-oriented specification.
  • Backed by a 5-year warranty

Specifications

  • Lumen Output: 700/900/1200 (selectable package), up to 1150 delivered lumens depending on CCT/output setting
  • Wattage: 6W/8W/10W selectable (3" size)
  • Voltage: 120-277V
  • Frequency: 50/60Hz
  • CRI: 80+
  • Dimming: 0-10V, dims to 5% with low-end cutoff
  • Power Factor: >0.9
  • THD: <20%
  • Rated Life: L70 60,000 hours (calculated L70 up to 135,000 hours)
  • Ambient Operating Temperature: -40�b0F to 104�b0F (-40�b0C to 40�b0C)
  • Ingress Protection: IP65
  • Construction: Die-cast aluminum housing with tempered glass diffuser

Common Uses

Ideal for retail storefronts, hospitality exteriors, multifamily and residential facades, educational campuses, and healthcare buildings where durable, controllable architectural wall lighting is required.
