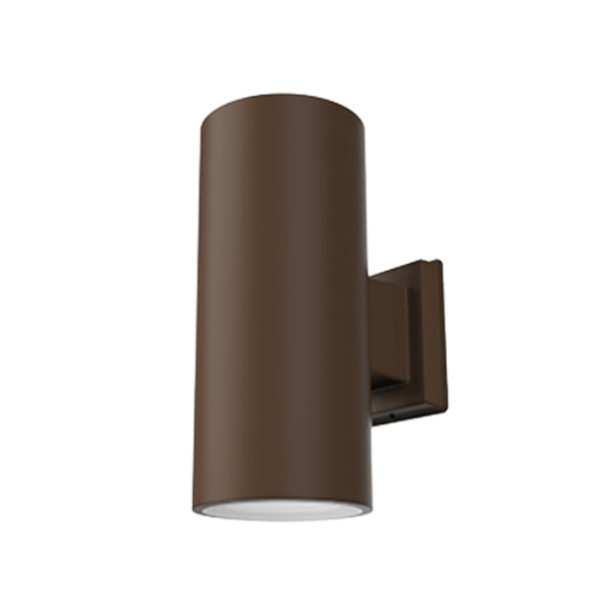

Green Creative EXCYL Wall Mount Cylinder, 6", Wall Mount Indirect, Large Light Engine, 3900/3200/2600lm Selectable, 80+ CRI, 3000K/3500K/4000K Selectable, 0-10V Dimming, Clear Reflector

By Green Creative

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Green Creative EXCYL Wall Mount Cylinder, 6", Wall Mount Indirect, Large Light Engine, 3900/3200/2600lm Selectable, 80+ CRI, 3000K/3500K/4000K Selectable, 0-10V Dimming, Clear Reflector

$338.50
  • SKU: GC-EXCYL6/WMI/L/8CCT3S/DIM010UNV/X/X/CC
  • MPN: EXCYL6/WMI/L/8CCT3S/DIM010UNV/X/X/CC

Quick Overview

6" outdoor wall-mount indirect LED cylinder with selectable 3900/3200/2600 lumens, selectable 3000K/3500K/4000K, 0-10V dimming to 5%, integrated photocell, and IP65 wet-location construction.

ETL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Green Creative EXCYL Wall Mount Cylinder is a specification-grade outdoor architectural fixture designed for modern façade and perimeter lighting. As part of the EXCYL series, it combines selectable lumen output and selectable CCT in one compact platform to simplify design and stocking. Its robust die-cast construction and optical flexibility make it a dependable choice for commercial exterior projects.

Key Features and Benefits

  • SelectDrive output tuning enables field selection of light levels for easier commissioning and future adaptability.
  • SelectKelvin technology provides 3000K, 3500K, or 4000K options to match site aesthetics and visual comfort goals.
  • Integrated photocell supports automatic dusk-to-dawn operation and can be enabled or disabled as needed.
  • Durable die-cast aluminum body with gasketed tempered glass helps protect performance in demanding outdoor environments.
  • ETL Listed for wet locations and FCC compliant for confidence in code-oriented commercial applications.
  • Backed by a 5-year warranty

Specifications

  • Lumen Output: 2600/3200/3900
  • Wattage: 18W/24W/30W (field selectable), up to 35W max input
  • Voltage: 120-277V
  • Frequency: 50/60Hz
  • Dimming: 0-10V, dims to 5% with low-end cutoff
  • Color Temperature: 3000K/3500K/4000K selectable
  • CRI: 80+
  • Beam Angle: 15°/25°/40°/60°
  • Distribution: Indirect (model configuration), direct/indirect optical platform available
  • Power Factor: >0.9
  • THD: <20%
  • Surge Protection: 4kV
  • IP Rating: IP65
  • Ambient Temperature: -40°F to 104°F (-40°C to 40°C)
  • Rated Life: L70 60,000 hours (calculated L70 135,000 hours)

Common Uses

Ideal for retail storefronts, hospitality exteriors, multifamily and residential entries, educational campuses, and healthcare facilities where architectural wall illumination and weather-resistant performance are required.
