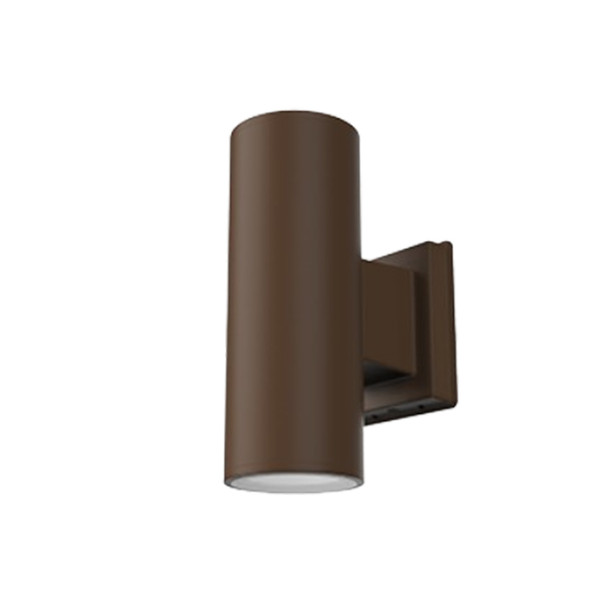

EXCYL Wall Mount Cylinder, 4", Wall Mount Direct, Medium Light Engine, 80+ CRI, Selectable 3000K/3500K/4000K, 0-10V Dimming, Custom Color, Clear Reflector

By Green Creative

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EXCYL Wall Mount Cylinder, 4", Wall Mount Direct, Medium Light Engine, 80+ CRI, Selectable 3000K/3500K/4000K, 0-10V Dimming, Custom Color, Clear Reflector

$287.70
  • SKU: GC-EXCYL4/WMD/M/8CCT3S/DIM010UNV/X/X/CC
  • MPN: EXCYL4/WMD/M/8CCT3S/DIM010UNV/X/X/CC

Quick Overview

4" outdoor LED wall mount cylinder with selectable wattage and CCT, 0-10V dimming, integrated photocell, IP65 wet-location rating, and direct distribution for retail, hospitality, education, and facade lighting.

ETL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Green Creative EXCYL Wall Mount Cylinder is a compact architectural outdoor fixture designed for clean wall-mounted illumination with modern styling. As part of the EXCYL series, it combines selectable output and selectable CCT in one housing to simplify specification and field setup. This 4" direct model is ideal for projects that need flexible performance, durable construction, and reliable outdoor operation.

Key Features and Benefits

  • Selectable lumen and wattage settings via SelectDrive technology for easier on-site tuning
  • Selectable 3000K/3500K/4000K with SelectKelvin for adaptable visual comfort
  • Integrated photocell in the wall bracket enables automatic dusk-to-dawn control
  • Die-cast aluminum body with tempered glass diffuser supports long-term exterior durability
  • ETL Listed for wet locations, FCC compliant, and backed by a 5-year warranty

Specifications

  • Lumen Output: 1356/1760/2100 lm (3000K & 4000K), 1404/1840/2200 lm (3500K)
  • Wattage: 12W/16W/20W selectable
  • Voltage: 120-277V, 50/60Hz
  • Dimming: 0-10V dimmable to 5% with low-end cutoff
  • CRI: 80+
  • Beam Angle: 15°/25°/40°/60° options by optic selection
  • Rated Life: L70 60,000 hours (calculated L70 up to 135,000 hours)
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Ingress Protection: IP65
  • Power Factor: >0.9; THD: <20%

Common Uses

Commonly used for exterior walls, entryways, hospitality facades, retail storefronts, educational campuses, healthcare buildings, and residential multi-family applications requiring focused architectural wall lighting.

RESOURCES AND DOWNLOADS

EXCYL Wall Mount Cylinder Spec Sheet
