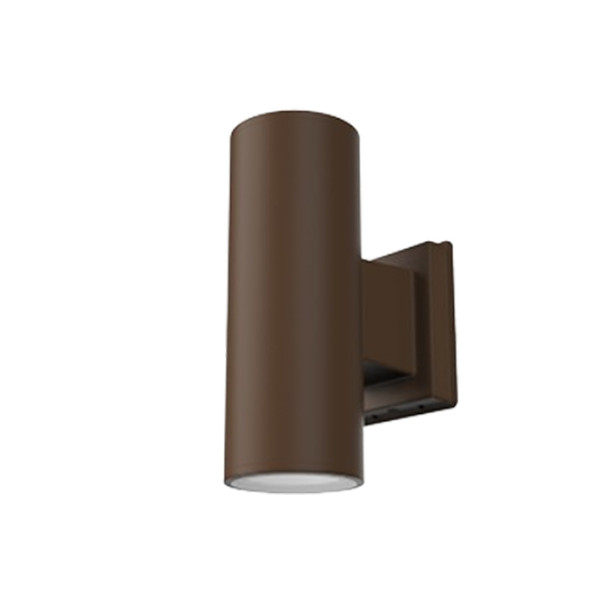

Green Creative EXCYL Wall Mount Cylinder, 4", Wall Mount Indirect, Medium Light Engine, 80+ CRI, Selectable 3000K/3500K/4000K, 0-10V Dimming, Clear Reflector

By Green Creative

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Green Creative EXCYL Wall Mount Cylinder, 4", Wall Mount Indirect, Medium Light Engine, 80+ CRI, Selectable 3000K/3500K/4000K, 0-10V Dimming, Clear Reflector

$287.70
  • SKU: GC-EXCYL4/WMI/M/8CCT3S/DIM010UNV/X/X/CC
  • MPN: EXCYL4/WMI/M/8CCT3S/DIM010UNV/X/X/CC

Quick Overview

4" outdoor wall-mount indirect LED cylinder with selectable lumen output and 3000K/3500K/4000K CCT, 0-10V dimming, integrated photocell, IP65 wet-location rating, and die-cast aluminum housing.

ETL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Green Creative EXCYL Wall Mount Cylinder is a compact architectural outdoor fixture designed for dependable indirect illumination and modern exterior aesthetics. As part of the EXCYL series, it combines selectable output and selectable CCT technologies to simplify specification and field flexibility. Its robust construction and weather-ready design make it a strong choice across commercial and residential projects.

Key Features and Benefits

  • Selectable light output and SelectKelvin tuning allow one fixture to adapt to multiple project requirements.
  • Integrated photocell enables automatic dusk-to-dawn style on/off control, with option to deactivate.
  • Durable die-cast aluminum body with tempered glass diffuser supports long-term outdoor performance.
  • ETL Listed for wet locations, FCC compliant, and backed by a 5-year warranty

Specifications

  • Lumen Output: 1210/1552/1925 (indirect, 4000K low/med/high)
  • Wattage: 12W/16W/20W
  • Voltage: 120-277V
  • Color Temperature: 3000K/3500K/4000K
  • CRI: 80+
  • Dimming: 0-10V to 5% with low-end cutoff
  • Beam Angle: 15°/25°/40°/60°
  • Power Factor: >0.9
  • THD: <20%
  • Rated Life: 60000 hours L70 (calculated L70 up to 135000 hours)
  • Operating Temperature: -40�b0F to 104�b0F (-40�b0C to 40�b0C)
  • Ingress Protection: IP65

Common Uses

Ideal for exterior walls in retail centers, hospitality properties, multifamily and residential buildings, schools, and healthcare facilities where controlled indirect lighting and architectural appeal are both priorities.
