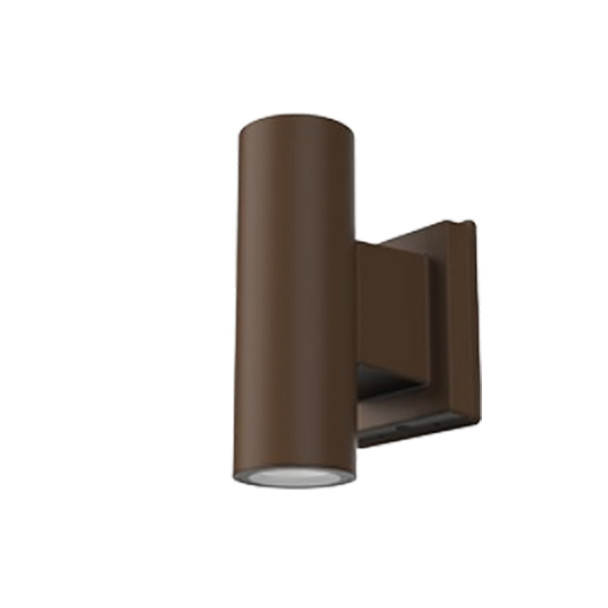

EXCYL Wall Mount Cylinder, 3", Wall Mount Indirect, Small Light Engine, 3000K/3500K/4000K Selectable, 0-10V Dimming, Clear Reflector

By Green Creative

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EXCYL Wall Mount Cylinder, 3", Wall Mount Indirect, Small Light Engine, 3000K/3500K/4000K Selectable, 0-10V Dimming, Clear Reflector

$231.85
  • SKU: GC-EXCYL3/WMI/S/8CCT3S/DIM010UNV/X/X/CC
  • MPN: EXCYL3/WMI/S/8CCT3S/DIM010UNV/X/X/CC

Quick Overview

3" outdoor wall-mount indirect LED cylinder with selectable lumen output and 3000K/3500K/4000K CCT, 0-10V dimming to 5%, integrated photocell, and IP65 wet-location rating for architectural exterior lighting.

ETL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The GREENCREATIVE EXCYL Wall Mount Cylinder is a compact architectural outdoor fixture designed for reliable indirect illumination in demanding exterior environments. As part of the EXCYL series, it combines selectable output and selectable CCT in one housing, giving contractors and designers flexible performance from a single SKU.

Key Features and Benefits

  • Selectable light output and SelectKelvin tuning simplify stocking and on-site configuration.
  • Integrated photocell enables automatic dusk-to-dawn style control and can be switched on or off as needed.
  • Rugged die-cast aluminum construction with gasketed tempered glass supports long-term outdoor durability.
  • ETL Listed for wet locations, FCC compliant, and backed by a 5-year warranty

Specifications

  • Lumen Output: 345/448/550 (indirect mode, 50% output split)
  • Wattage: 6W/8W/10W selectable
  • Voltage: 120-277V
  • Color Temperature: 3000K/3500K/4000K selectable
  • CRI: 80+
  • Dimming: 0-10V, dim-to-off with low-end cutoff
  • Beam Angle: 15°/25°/40°/60° options by optic selection
  • IP Rating: IP65
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Rated Life: 60000 hours L70

Common Uses

Ideal for retail storefronts, hospitality properties, multifamily and residential exteriors, educational campuses, and healthcare facilities where controlled architectural wall lighting and weather resistance are required.
