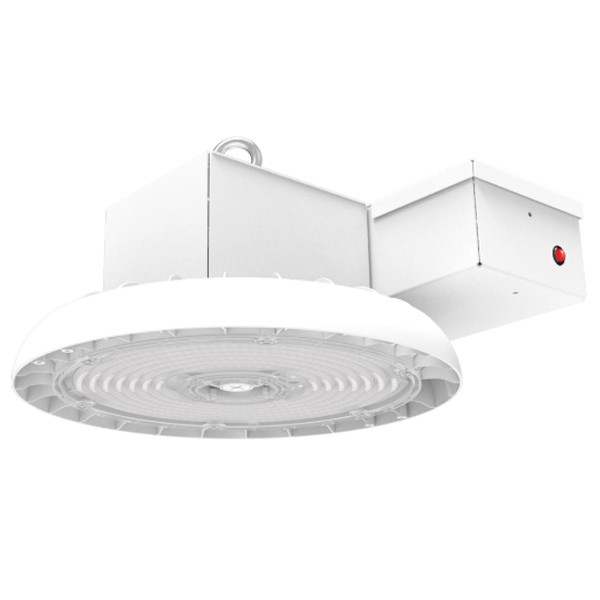

Industrial Lighting Products RB5 Kinetic Light Bay, Small Round High Bay, 9000 lm, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens, Universal Hook & Cord Mount w/ 3/4" IP Pendant Adapter

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products RB5 Kinetic Light Bay, Small Round High Bay, 9000 lm, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens, Universal Hook & Cord Mount w/ 3/4" IP Pendant Adapter

$472.30
  • SKU: ILP-RB5S-9L-U-CCTS-PCL-KLB
  • MPN: RB5S-9L-U-CCTS-PCL-WHT-KLB

Quick Overview

Selectable-output round LED high bay with 9000 lm package, 3500K/4000K/5000K CCT switchability, 120-277V input, 0-10V dimming, IP65 optics, and IK10 lens impact protection for warehouses, gyms, and industrial spaces.

DLC Standard
Title 24 Compliant
WARRANTY 5 YEARS
IP65
IK10
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP RB5 Kinetic Light Bay is a performance-driven round high bay designed for demanding commercial and industrial interiors. Built in ILP’s RB5 series, this compact small-body configuration combines selectable CCT flexibility, rugged construction, and high efficacy to simplify specification across varied applications.

Key Features and Benefits

  • Field-selectable 3500K/4000K/5000K output helps match visual comfort and task needs without changing fixtures.
  • Rugged optical system with IK10-rated polycarbonate lens and IP65 sealed chamber stands up to impact, dust, and moisture.
  • 0-10V dimming with universal 120-277V driver supports energy-saving controls and retrofit-friendly integration.
  • Low-profile die-cast aluminum housing with thermal fins improves heat dissipation for long-term lumen maintenance.
  • Certified performance with LM-79/LM-80 testing, RoHS compliance, Title 24 compliance, and DLC listing support rebate and code-driven projects.
  • Backed by a 5-year standard warranty with optional 10-year coverage for long-life confidence.

Specifications

  • Lumen Output: 9009|9910|9188
  • Wattage: 56W
  • Voltage: 120-277V
  • Color Temperature: 3500K|4000K|5000K
  • CRI: 80
  • Dimming Type: 0-10V (10%-100%)
  • Frequency: 50/60
  • Power Factor: >0.90
  • THD: <20
  • Rated Life (L70): 100000+
  • Lens: Clear polycarbonate (PCL)
  • Mounting: Universal hook & cord mount with 3/4" IP pendant adapter
  • IP Rating: IP65
  • IK Rating: IK10
  • Max Ambient Temperature: 45°C
  • Surge Protection: 6kV minimum

Common Uses

Ideal for warehouses, manufacturing plants, distribution centers, gymnasiums, fitness centers, grocery facilities, and educational spaces requiring durable, efficient high-bay illumination.
