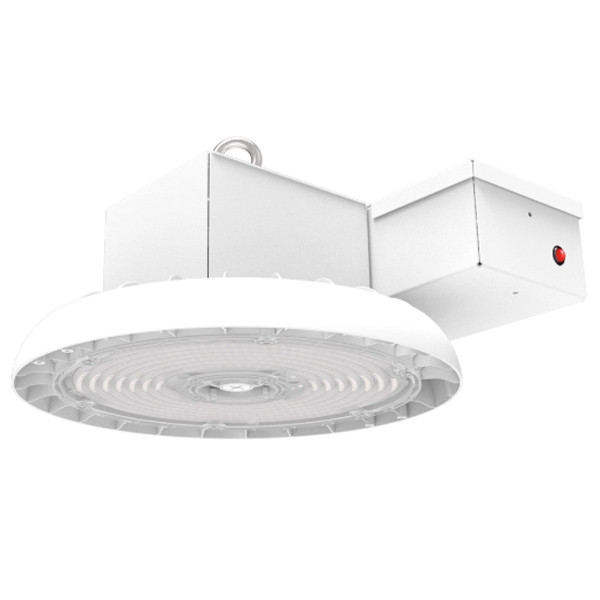

Industrial Lighting Products RB5 Kinetic Light Bay, Small Round High Bay, 15000 Lumens, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens, Universal Hook & Cord Mount with 3/4" IP Pendant Adapter

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products RB5 Kinetic Light Bay, Small Round High Bay, 15000 Lumens, 120-277V, 3500K/4000K/5000K Selectable, Clear Polycarbonate Lens, Universal Hook & Cord Mount with 3/4" IP Pendant Adapter

$496.90
  • SKU: ILP-RB5S-15L-U-CCTS-PCL-KLB
  • MPN: RB5S-15L-U-CCTS-PCL-BLK-KLB

Quick Overview

RB5S LED high bay delivers 15,000 lumens with selectable 3500K/4000K/5000K CCT, 120-277V input, 0-10V dimming, IP65 optics, and IK10 impact resistance for warehouses, gyms, and industrial spaces.

Title 24 Compliant
WARRANTY 5 YEARS
IP65
IK10
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP RB5 Kinetic Light Bay is a performance-driven round LED high bay designed for demanding commercial and industrial interiors. As part of ILP’s configurable RB5 lineup, it combines selectable CCT, robust optical protection, and flexible mounting to simplify project standardization. This configuration is ideal for facilities that need dependable output, visual comfort, and long service life.

Key Features and Benefits

  • Field-selectable CCT (3500K/4000K/5000K) supports easier on-site tuning for task visibility and occupant comfort.
  • Rugged IP65 optical chamber with IK10-rated polycarbonate lens helps protect performance in harsh environments.
  • 0-10V dimming compatibility enables energy-saving control strategies and smoother light level adjustment.
  • High-efficacy LED platform with advanced thermal design supports long-term lumen maintenance.
  • Certified to LM-79 and LM-80 standards, RoHS compliant, and Title 24 compliant for code-conscious projects.
  • Backed by a 5-year standard warranty for added confidence in commercial installations.

Specifications

  • Lumen Output: 14822
  • Wattage: 92W
  • Voltage: 120-277V
  • Color Temperature: 3500K|4000K|5000K
  • CRI: 80
  • Frequency: 50/60Hz
  • Power Factor: >0.90
  • THD: <20
  • Rated Life (L70): >100000 hours
  • Dimming: 0-10V (10%-100%)
  • Lens: Clear polycarbonate (PCL)
  • Housing: Die-cast aluminum with black polyester powder coat
  • Mounting: Universal hook and cord mount with 3/4" IP pendant adapter
  • Ingress/Impact Protection: IP65 optics, IK10 primary lens
  • Max Ambient Temperature: 45°C

Common Uses

Well-suited for warehouses, manufacturing plants, distribution centers, gymnasiums, fitness centers, grocery facilities, and educational buildings where durable, efficient high-bay illumination is required.
