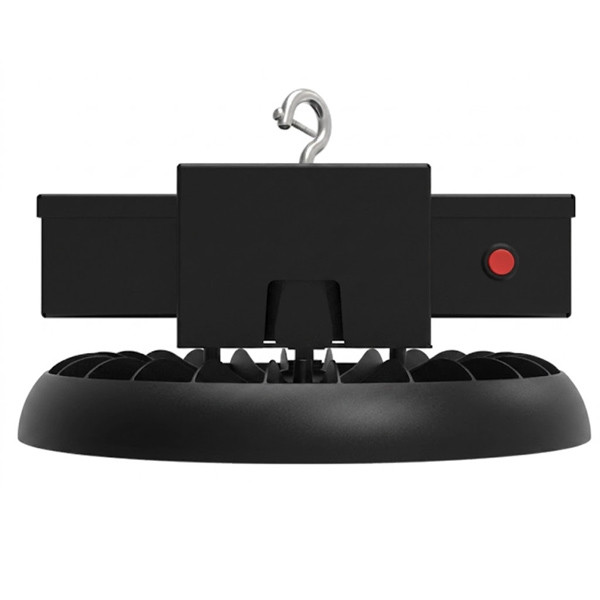

Industrial Lighting Products RB5 Kinetic Light Bay, Small Round High Bay, 18000 lumens, 120-277V, 3500K/4000K/5000K selectable, clear polycarbonate lens, universal hook and cord mount with 3/4" IP pendant adapter

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products RB5 Kinetic Light Bay, Small Round High Bay, 18000 lumens, 120-277V, 3500K/4000K/5000K selectable, clear polycarbonate lens, universal hook and cord mount with 3/4" IP pendant adapter

$496.90
  • SKU: ILP-RB5S-18L-U-CCTS-PCL-KLB
  • MPN: RB5S-18L-U-CCTS-PCL-BLK-KLB

Quick Overview

RB5 Kinetic Light Bay LED high bay with 18,000 lumen package, selectable 3500K/4000K/5000K CCT, 120-277V input, 0-10V dimming, IP65 optics, and IK10 lens for demanding warehouse and industrial spaces.

DLC Standard
Title 24 Compliant
WARRANTY 5 YEARS
IP65
IK10
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP RB5 Kinetic Light Bay is a performance-driven round LED high bay designed for industrial and commercial interiors that need reliable, efficient illumination. As part of ILP’s RB5 lineup, it combines selectable CCT flexibility, rugged construction, and high-impact optics to support a wide range of facility lighting requirements.

Key Features and Benefits

  • Field-selectable 3500K/4000K/5000K output helps tailor light quality to task areas and occupant comfort.
  • Rugged optical system with IK10-rated polycarbonate lens and IP65 sealed chamber stands up to harsh environments.
  • 0-10V dimming capability and high efficacy performance support energy-saving lighting strategies.
  • Universal hook and cord mounting with 3/4" IP pendant adapter simplifies installation and alignment.
  • Tested to LM-79 and LM-80 standards, RoHS compliant, Title 24 compliant, and available in DLC Standard or DLC Premium configurations.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 18201 (5000K, PCL)
  • Wattage: 117W
  • Input Voltage: 120-277V, 50/60Hz
  • CRI: 80 minimum
  • Power Factor: >0.90
  • THD: <20%
  • Rated Life: L70 >100,000 hours
  • Dimming: 0-10V (10%-100%)
  • Lens: Clear polycarbonate (PCL)
  • Housing: Die-cast aluminum with polyester powder coat
  • Max Ambient Temperature: 45°C (RB5S-15L/18L/22L)
  • Surge Protection: 6kV minimum
  • BUG Rating: B4-U3-G1|B4-U3-G2 (varies by optic)
  • Mounting: Hook and cord mount with 3/4" IP pendant adapter

Common Uses

Ideal for warehouses, manufacturing plants, distribution centers, gymnasiums, fitness centers, grocery facilities, and educational buildings requiring durable, high-output overhead lighting.
