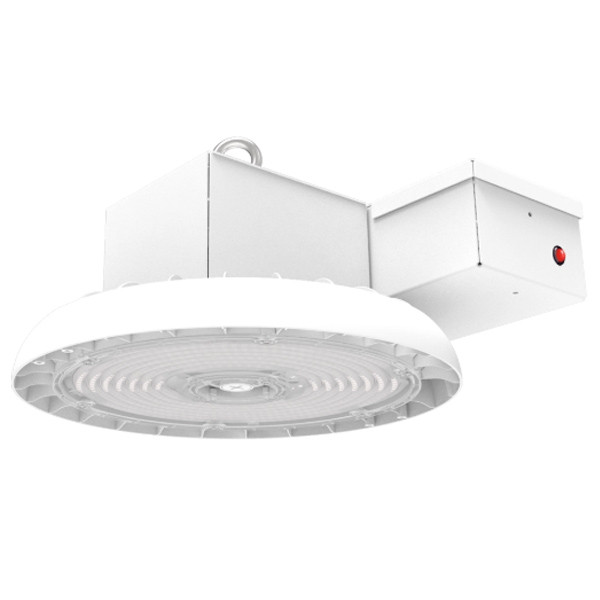

Industrial Lighting Products RB5 Kinetic Light Bay, Small Round High Bay, 15000lm|18000lm|22000lm, 120-277V, 3500K|4000K|5000K Selectable, Clear Polycarbonate Lens, Universal Hook & Cord Mount w/ 3/4" IP Pendant Adapter

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products RB5 Kinetic Light Bay, Small Round High Bay, 15000lm|18000lm|22000lm, 120-277V, 3500K|4000K|5000K Selectable, Clear Polycarbonate Lens, Universal Hook & Cord Mount w/ 3/4" IP Pendant Adapter

$490.75
  • SKU: ILP-RB5S-15L/18L/22L-U-CCTS-PCL-KLB
  • MPN: RB5S-15L/18L/22L-U-CCTS-PCL-BLK-KLB

Quick Overview

Selectable-lumen round LED high bay for industrial and commercial spaces, delivering 15,000/18,000/22,000 lumens with 3500K/4000K/5000K CCT selection, 0-10V dimming, IP65 optics, IK10 lens, and 120-277V input.

UL Listed
DLC Standard
Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
IP65
IK10
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP RB5 Kinetic Light Bay is a performance-driven round high bay designed for demanding commercial and industrial interiors. This configurable RB5S model combines selectable lumen output and field-selectable CCT in one fixture, making it a flexible solution across changing layout and task-lighting needs. Built as part of ILP’s robust high bay lineup, it emphasizes durability, efficiency, and installation versatility.

Key Features and Benefits

  • Selectable output package supports 15,000, 18,000, or 22,000 lumen configurations for adaptable light levels.
  • Field-selectable 3500K/4000K/5000K CCT allows tuning for comfort, visibility, and application-specific requirements.
  • Rugged optical system with IP65 sealed chamber and IK10 impact-rated polycarbonate lens for harsh environments.
  • 0-10V dimming compatibility and high-performance driver protections support energy savings and long-term reliability.
  • Tested to LM-79 and LM-80 standards, RoHS compliant, Title 24 compliant, and available in DLC Standard/Premium families.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 15000|18000|22000
  • Wattage: 148W
  • Voltage: 120-277V
  • Color Temperature: 3500K|4000K|5000K
  • CRI: 80
  • Dimming Type: 0-10V (10%-100%)
  • Frequency: 50/60
  • Power Factor: >0.90
  • THD: <20
  • Rated Life (L70): 100000+
  • Surge Protection: 6kV minimum
  • Max Ambient Temperature: 45°C
  • Mounting: Hook and cord mount with 3/4" IP pendant adapter
  • Housing Material: Die-cast aluminum with sheet metal driver/emergency housings
  • Lens Material: Polycarbonate (clear)
  • IP Rating: IP65
  • IK Rating: IK10
  • BUG Rating: B4-U3-G1|B4-U3-G2 (optic dependent)

Common Uses

Ideal for warehouses, manufacturing plants, distribution centers, gymnasiums, fitness centers, grocery facilities, and educational buildings where high-output, durable, and controllable overhead lighting is required.
